PS-125-2-GY-S

Active

BRADY

SLEEVE, 0.125 IN DIA X 2 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.125 IN DIA X 2 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Label Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Label Size [Min]	Label Size [Max]	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]	Label Size [diameter]	Label Size [x]
BRADY PS-125-2-RD-S	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Red	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in	3.2 mm	50.8 mm
BRADY PS-125-150-RD-S	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Red	0.05 in 1.2 mm			0.11 in 2.8 mm			0.13 in 3.2 mm	1.5 " 38.1 mm
BRADY PS-125-2-GY-2	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Gray							0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm
BRADY PS-125-2-YL-S	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Yellow	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in	3.2 mm	50.8 mm
BRADY PS-125-150-WT	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	White	0.05 in 1.2 mm			0.11 in 2.8 mm			0.13 in 3.2 mm	1.5 " 38.1 mm
BRADY PS-125-2-YL-2	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Yellow							0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm
BRADY PS-125-2-WT-SC	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	White	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in	3.2 mm	50.8 mm
BRADY PS-125-2-GY-S	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Gray	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in	3.2 mm	50.8 mm
BRADY PS-125-2-GR-S-2	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	Green							0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm
BRADY PS-125-2-WT-S	Heat Shrinkable	Polyolefin (PO)	135 °C	-55 °C	White	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in	3.2 mm	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 409.09
LCSC	Piece	1	$ 152.32

General part information

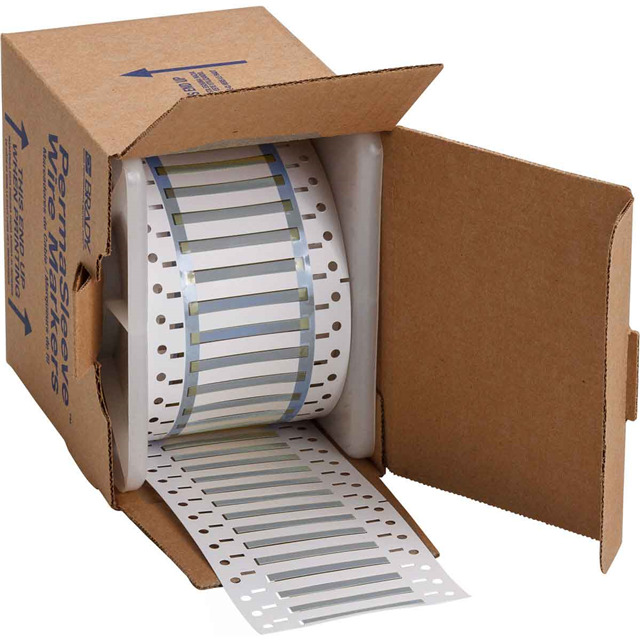

Gray Heat Shrinkable Label 2.00" W x 0.13" Dia (50.8mm x 3.2mm); Cable O.D. 0.05" ~ 0.11" (1.2mm ~ 2.8mm)

Technical documentation and resources
