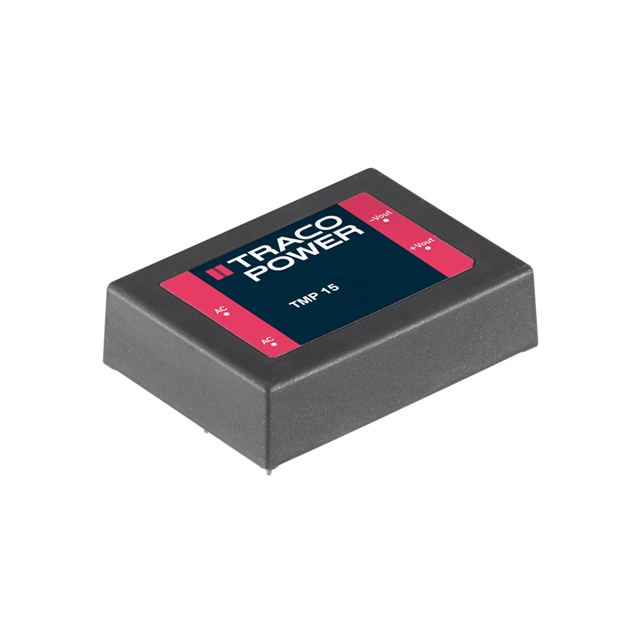

TMP 15112
ActiveTraco Power
AC/DC CONVERTER 12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMP 15112
ActiveTraco Power
AC/DC CONVERTER 12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMP 15112 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE, cURus, CB |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 79 % |
| Features | Universal Input, SCP, OTP |
| Line Regulation | 1 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-DIP Module |
| Package / Case | 4 Lead |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 74 mm |
| Size / Dimension [x] | 2.91 " |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [z] | 0.77 " |
| Size / Dimension [z] | 19.5 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.80 | |
| 10 | $ 38.38 | |||
| 25 | $ 37.10 | |||
| 50 | $ 36.16 | |||
| 100 | $ 35.24 | |||
| 250 | $ 34.06 | |||
| 500 | $ 30.19 | |||
Description
General part information
TMP 15 Series
Enclosed AC DC Converters 1 Output 12V 1.25A 85 ~ 264 VAC, 120 ~ 370 VDC Input
