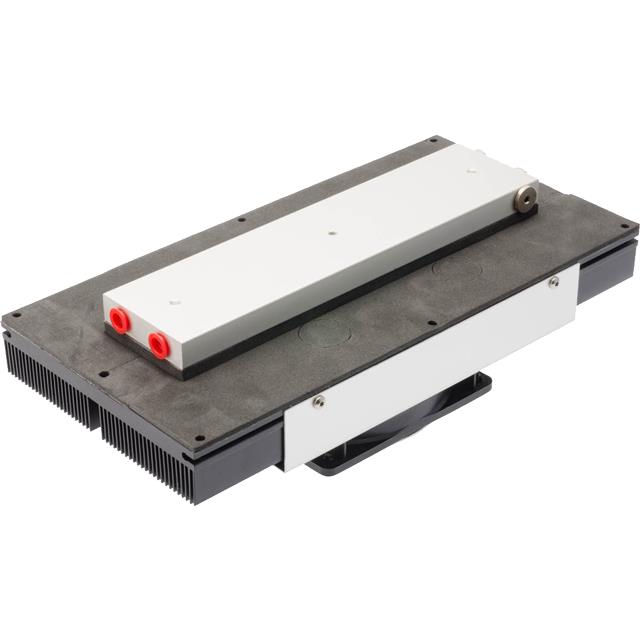

LA-115-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-AIR 113W
Deep-Dive with AI
Search across all available documentation for this part.
LA-115-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-AIR 113W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LA-115-24-02-00-00 |
|---|---|
| Current | 5.8 A |
| Dimensions - Overall [x] | 300 mm |
| Dimensions - Overall [y] | 152 mm |
| Dimensions - Overall [z] | 98 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Liquid to Air |
| Operating Temperature [Max] | 47 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 113 W |
| Power - Input | 139 W |
| Voltage | 24 V |
| Weight | 3 kg |
| Weight | 6.6 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 533.28 | |
| 5 | $ 499.95 | |||
| 10 | $ 486.62 | |||
Description
General part information
LA-115-24 Series
Liquid to Air Thermoelectric Assembly 113 W
