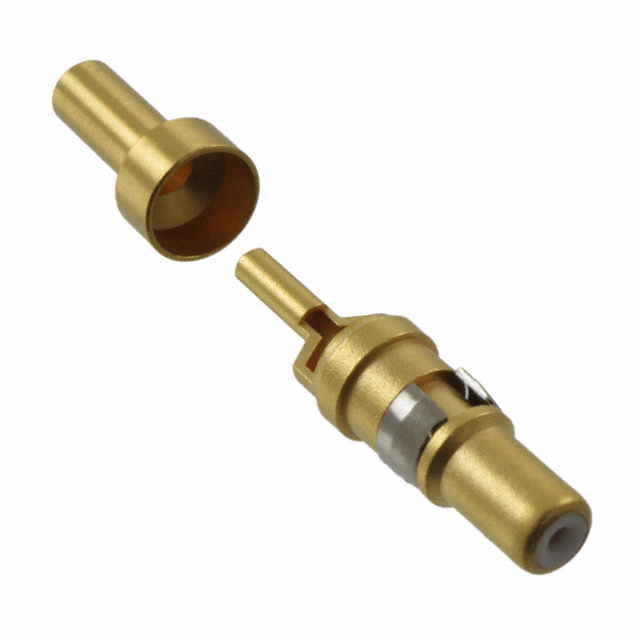

DM53740
ActiveITT Cannon, LLC
CONN D-SUB PIN COAX CABLE CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DM53740
ActiveITT Cannon, LLC
CONN D-SUB PIN COAX CABLE CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DM53740 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Type | Coaxial |
| Wire Gauge | Coaxial Cable |
DM537 Series
| Part | Contact Type | Contact Finish | Type | Wire Gauge | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Size | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Male Pin | Gold | Coaxial | Coaxial Cable | Solder | |||||
ITT Cannon, LLC | Male Pin | Gold | Coaxial | Coaxial Cable | Solder | 50 µin | 1.27 µm | |||
ITT Cannon, LLC | Female Socket | Gold | Coaxial | Coaxial Cable | Crimp | 50 µin | 1.27 µm | Brass | ||
ITT Cannon, LLC | Male Pin Right Angle | Gold | Coaxial | Coaxial Cable | Solder | 8 | ||||
ITT Cannon, LLC | Female Socket | Gold | Coaxial | RG-179 B/U | Crimp | 50 µin | 1.27 µm | 8 | 316 | |
ITT Cannon, LLC | Female Socket Right Angle | Gold | Coaxial | Coaxial Cable | Solder | 50 µin | 1.27 µm | 8 | ||
ITT Cannon, LLC | Female Socket | Gold | Coaxial | Coaxial Cable | Solder | |||||
ITT Cannon, LLC | Male Pin | Gold | Coaxial | Coaxial Cable | Solder | 8 | ||||
ITT Cannon, LLC | Male Pin | Gold | Coaxial | Coaxial Cable | Crimp | |||||
ITT Cannon, LLC | Female Socket | Gold | Power | Solder Cup | 50 µin | 1.27 µm | 8 | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.73 | |
| 10 | $ 20.78 | |||
| 25 | $ 19.88 | |||
| 50 | $ 19.24 | |||
| 100 | $ 18.60 | |||
| 250 | $ 17.57 | |||
| 500 | $ 17.06 | |||
Description
General part information
DM537 Series
D-Sub Contact Male Pin Gold Coaxial Cable Crimp Machined
