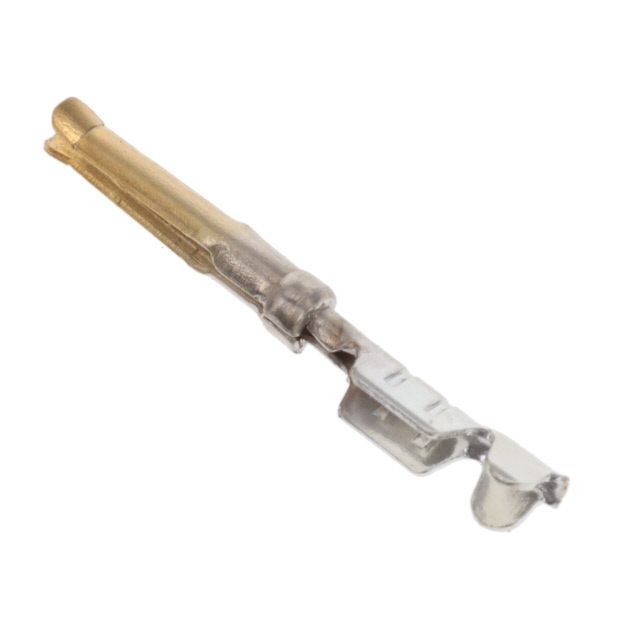

HDCS-01-R
ActiveAdam Tech
HIGH DENSITY D-SUB SOCKET CONTAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDCS-01-R
ActiveAdam Tech
HIGH DENSITY D-SUB SOCKET CONTAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDCS-01-R |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Insulation Support, High Density (HD) |
| Termination Finish | Nickel |
| Type | Signal |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 25 | $ 0.05 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 10000 | $ 0.03 | ||
| 20000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 70000 | $ 0.02 | |||
| 100000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
HDCS-01 Series
D-Sub Contact Female Socket Gold 24-26 AWG Crimp Stamped
