430764-507

Laird Thermal Systems, Inc.

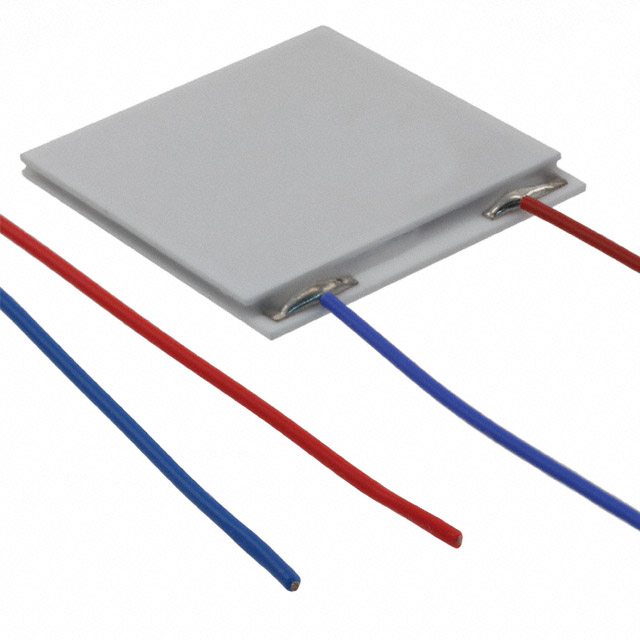

PELTIER UT15,12,F2,4040,TA,RT,W6

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER UT15,12,F2,4040,TA,RT,W6

Technical Specifications

Parameters and characteristics for this part

Specification	430764-507

Current - Max [Max]	14.7 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	2.84 mm
Number of Stages	1
Operating Temperature	80 °C
Resistance	910 mOhms
Size / Dimension [x]	43.9 mm
Size / Dimension [y]	39.9 mm
Voltage - Max [Max]	14.5 V

Part	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Number of Stages	Current - Max [Max]	Operating Temperature	Height [z]	Features	Delta Tmax @ Th	Resistance
Laird Thermal Systems, Inc. 430764-507	39.9 mm	43.9 mm	14.5 V	1	14.7 A	80 °C	2.84 mm	Lead Wires Sealed - Silicone RTV	67 °C	910 mOhms
Laird Thermal Systems, Inc. 430764-505	39.9 mm	43.9 mm	14.5 V	1	14.7 A	80 °C	2.84 mm	Lead Wires Non-Sealed	67 °C	910 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 126.2W @ 25°C 14.7 A 80°C
