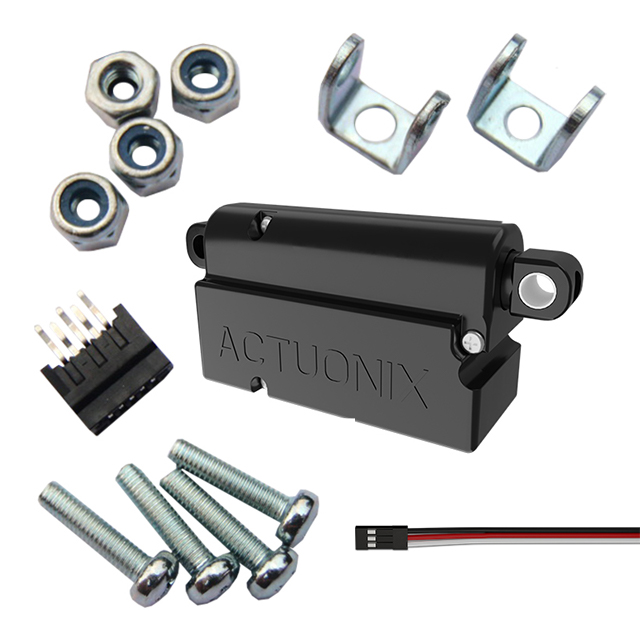

PQ12-30-6-R

Active

Actuonix Motion Devices Inc

PQ12-R MICRO LINEAR SERVO

Search across all available documentation for this part.

Active

Actuonix Motion Devices Inc

PQ12-R MICRO LINEAR SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	PQ12-30-6-R

Accuracy	0.1 mm
Construction	Ball Screw
Duty Cycle	20 %
Features	RC Linear Servo
Gear Reduction Ratio	30
Ingress Protection	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	18 N
Load Force (Dynamic)	4.05 lbf
Motor Type	Brushed
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Speed	28 mm/s
Speed	1.1 in/s
Stroke Length	0.787 in
Stroke Length	20 mm
Type	Linear Actuator
Voltage - Rated	6 VDC

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Accuracy	Speed	Speed	Gear Reduction Ratio	Construction	Features	Type	Stroke Length	Stroke Length	Ingress Protection	Voltage - Rated	Duty Cycle	Load Force (Dynamic)	Load Force (Dynamic)	Motor Type	Feedback Type
Actuonix Motion Devices Inc PQ12-30-12-S	-10 °C	50 °C	0.1 mm	28 mm/s	1.1 in/s	30	Ball Screw	Limit Switches	Linear Actuator	0.787 in	20 mm	IP54 - Dust Protected Water Resistant	12 VDC	20 %	18 N	4.05 lbf	Brushed
Actuonix Motion Devices Inc PQ12-30-6-R	-10 °C	50 °C	0.1 mm	28 mm/s	1.1 in/s	30	Ball Screw	RC Linear Servo	Linear Actuator	0.787 in	20 mm	IP54 - Dust Protected Water Resistant	6 VDC	20 %	18 N	4.05 lbf	Brushed
Actuonix Motion Devices Inc PQ12-30-12-P	-10 °C	50 °C	0.1 mm	28 mm/s	1.1 in/s	30	Ball Screw		Linear Actuator	0.787 in	20 mm	IP54 - Dust Protected Water Resistant	12 VDC	20 %	18 N	4.05 lbf	Brushed	Potentiometer
Actuonix Motion Devices Inc PQ12-30-6-P	-10 °C	50 °C	0.1 mm	28 mm/s	1.1 in/s	30	Ball Screw		Linear Actuator	0.787 in	20 mm	IP54 - Dust Protected Water Resistant	6 VDC	20 %	18 N	4.05 lbf	Brushed	Potentiometer
Actuonix Motion Devices Inc PQ12-30-6-S	-10 °C	50 °C	0.1 mm	28 mm/s	1.1 in/s	30	Ball Screw	Limit Switches	Linear Actuator	0.787 in	20 mm	IP54 - Dust Protected Water Resistant	6 VDC	20 %	18 N	4.05 lbf	Brushed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00
