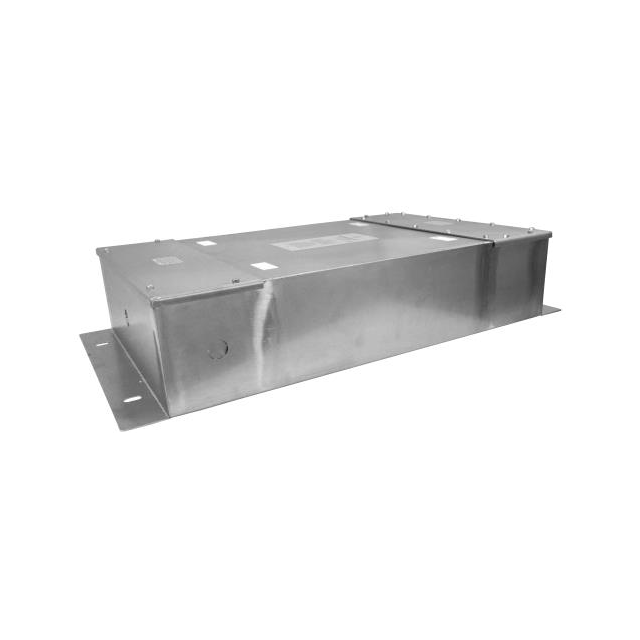

057.03013.00

Active

Astrodyne TDI

LINE FILTER 277V/480VAC 30A CHAS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 277V/480VAC 30A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	057.03013.00

Applications	General Purpose
Approval Agency	CE, SEMKO, cURus
Current	30 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Threaded Post (M6)
Voltage - Rated AC	277 V, 480 V
Voltage - Rated AC (Phase to Ground/Neutral)	2.2 kV

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Mounting Type	Applications	Voltage - Rated AC	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Filter Type	Current	Operating Temperature [Max]	Operating Temperature [Min]
Astrodyne TDI 057.03013.00	60 Hz	50 Hz	Threaded Post (M6)	Chassis Mount	General Purpose	277 V 480 V	2.2 kV	CE cURus SEMKO	Three Phase (Delta)	30 A	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 30 A 277V, 480V 50/60Hz Threaded Post (M6)
