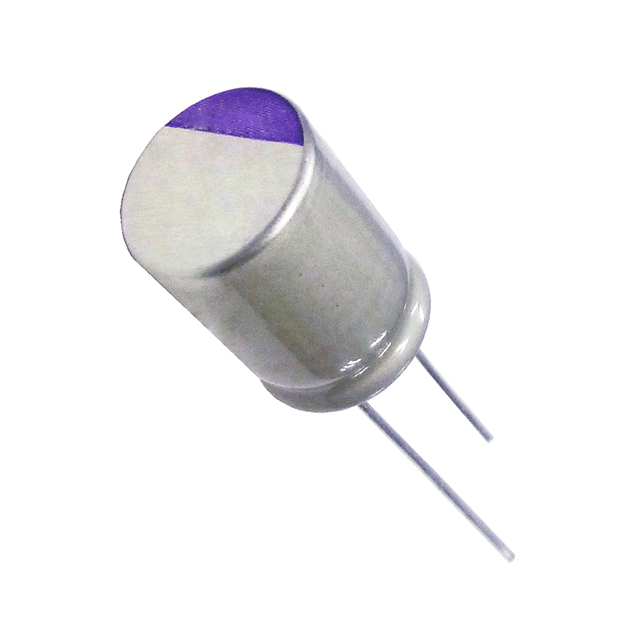

16SEPG560M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 560UF 20% 16V TH

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 560UF 20% 16V TH

Technical Specifications

Parameters and characteristics for this part

Specification	16SEPG560M

Applications	General Purpose
Capacitance	560 µF
ESR (Equivalent Series Resistance)	8 mOhms
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	6.1 A
Ripple Current @ Low Frequency	305 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Voltage - Rated	Ripple Current @ Low Frequency	Lifetime @ Temp.	Tolerance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Capacitance	Ripple Current @ High Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type
Panasonic Industrial Automation Sales 16SEPG560M	3.5 mm	0.138 in	13 mm	0.512 "	8 mOhms	16 V	305 mA	5000 Hrs	20 %	General Purpose	0.315 "	8 mm	Through Hole	560 µF	6.1 A	Radial Can	105 ░C	-55 °C	Polymer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

560 µF 16 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 5000 Hrs @ 105°C
