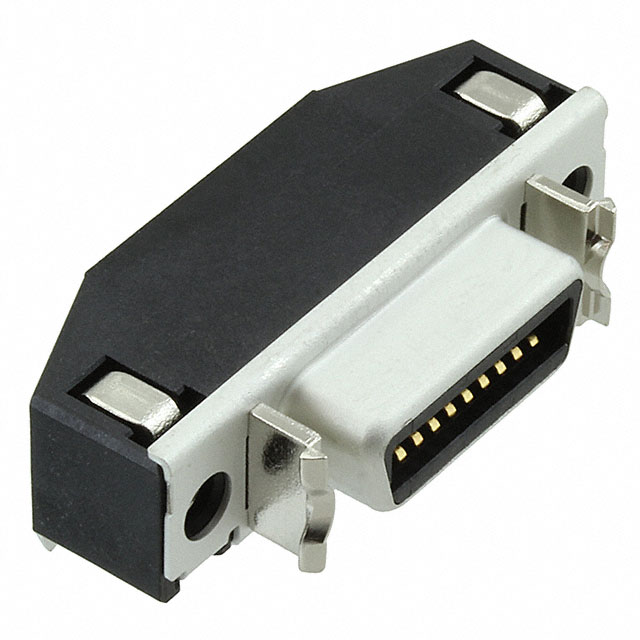

DF02R020NA3

Active

JAE Electronics

PANEL MOUNTING D-SUB / VGA CONNECTORS ROHS

Search across all available documentation for this part.

Active

JAE Electronics

PANEL MOUNTING D-SUB / VGA CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	DF02R020NA3

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	20
Number of Rows	2
Termination	Solder

Part	Flange Feature	Flange Feature	Connector Style	Termination	Number of Positions	Contact Finish	Mounting Type	Number of Rows	Connector Type
JAE Electronics DF02R020NA3	Housing/Shell	2.6 M	Outer Shroud Contacts	Solder	20	Gold	Panel Mount Right Angle Through Hole	2	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
