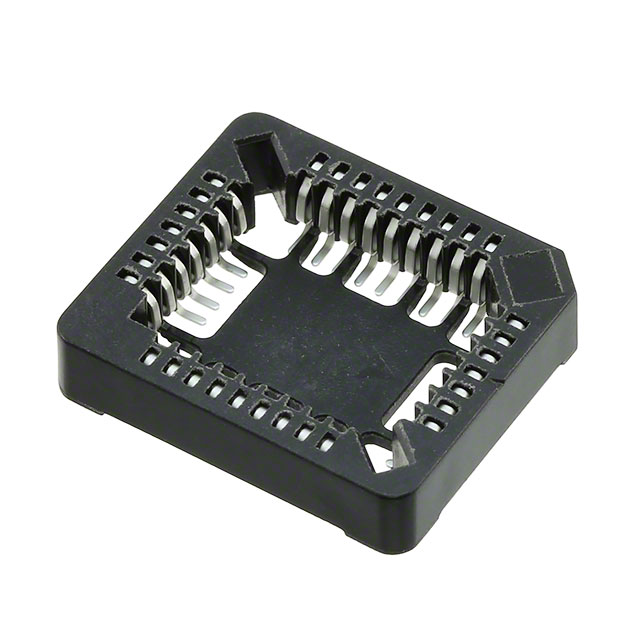

A-CCS 032-Z-SM
ActiveAssmann WSW Components
IC PLCC SOCKET 32POS TIN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-CCS 032-Z-SM
ActiveAssmann WSW Components
IC PLCC SOCKET 32POS TIN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-CCS 032-Z-SM |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160 µin |
| Contact Finish Thickness - Post | 4.06 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 15 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 32 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Type | PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.21 | |
| 10 | $ 1.02 | |||
| 29 | $ 0.98 | |||
| 58 | $ 0.96 | |||
| 116 | $ 0.92 | |||
| 261 | $ 0.83 | |||
| 522 | $ 0.75 | |||
| 1015 | $ 0.67 | |||
| 2523 | $ 0.60 | |||
Description
General part information
A-CCS 03 Series
32 (2 x 7, 2 x 9) Pos PLCC Socket Tin Surface Mount
