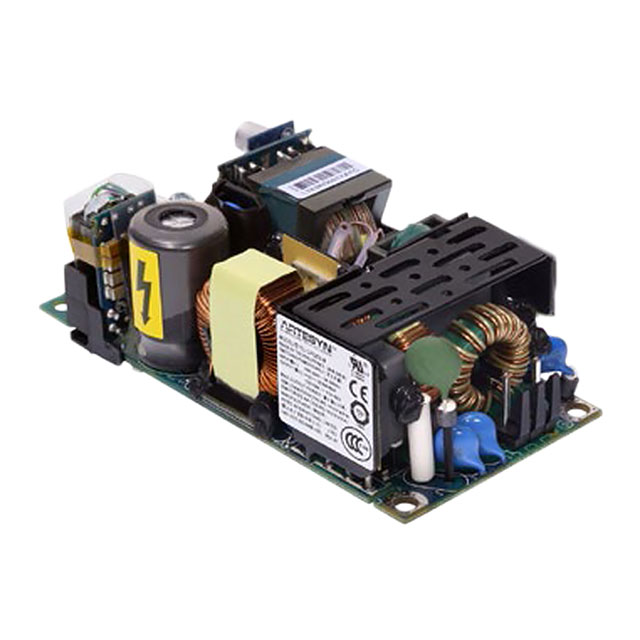

CPS258-M

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 48V 155W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 48V 155W

Technical Specifications

Parameters and characteristics for this part

Specification	CPS258-M

Applications	ITE (Commercial), Medical
Approval Agency	UL, CCC, TUV, CE, CSA, CB
Current - Output 1	3.2 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.29 in
Size / Dimension [z]	32.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Voltage - Isolation	Features	Current - Output 1	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Number of Outputs	Applications	Mounting Type	Voltage - Output 1	Type
ARTESYN / Advanced Energy CPS258-M	4000 V	Adjustable Output PFC Standby Output Universal Input	3.2 A	CB CCC CE CSA TUV UL	50.8 mm	2 in	1.29 in	101.6 mm	4 in	32.8 mm		90 VAC	264 VAC	93 %	1	ITE (Commercial) Medical	Chassis Mount	48 V	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 90.96

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
