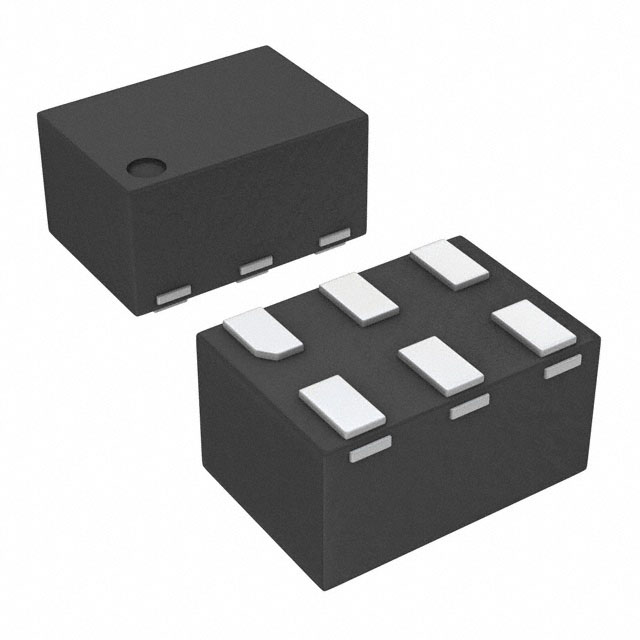

TC7SPN334L6X,LF
LTBToshiba Semiconductor and Storage
IC TRANSLTR UNIDIRECTIONAL 6MP6C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7SPN334L6X,LF
LTBToshiba Semiconductor and Storage
IC TRANSLTR UNIDIRECTIONAL 6MP6C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC7SPN334L6X,LF |
|---|---|
| Channel Type | Unidirectional |
| Channels per Circuit | 1 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Non-Inverted |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-MP6C |
| Supplier Device Package [x] | 1.45 |
| Supplier Device Package [y] | 1 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 2.7 V |
| Voltage - VCCA [Min] | 1.1 V |
| Voltage - VCCB [Max] | 3.6 V |
| Voltage - VCCB [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 5000 | $ 0.12 | ||
| 10000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 25000 | $ 0.10 | |||
| 35000 | $ 0.09 | |||
| 50000 | $ 0.09 | |||
Description
General part information
TC7SPN334 Series
Voltage Level Translator Unidirectional 1 Circuit 1 Channel 6-MP6C (1.45x1.0)
