Q-0L05F0008024i

Active

Amphenol Custom Cable

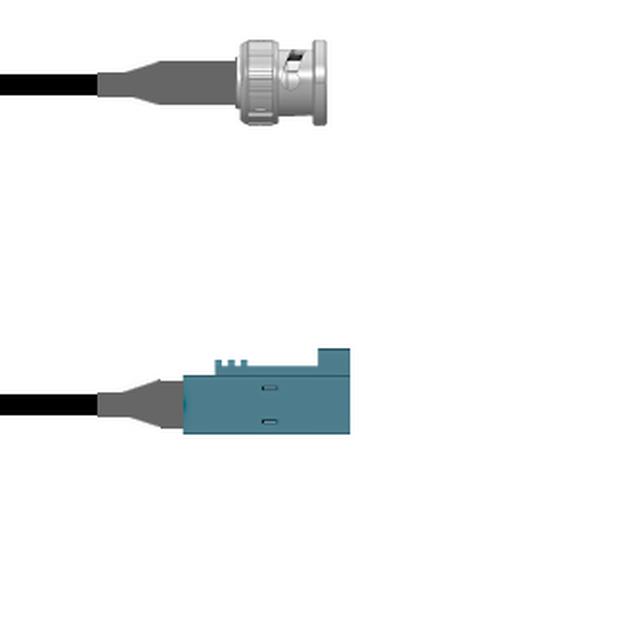

CBL ASSY BNC-FAKRA PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L05F0008024i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L05F0008024i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0L05F0 Series

Part	1st Connector Mounting Type	Length	Length	Length	Overall Impedance	Style	Cable Type	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	Color	Features	1st Connector	Frequency - Max [Max]	2nd Contact Gender
Amphenol Custom Cable Q-0L05F0008060i	Free Hanging (In-Line)	5 ft	1.5 m	5 '	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008001M	Free Hanging (In-Line)	3.3 ft	1 m	39.4 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008048i	Free Hanging (In-Line)	4 ft	1200 mm	48 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008072i	Free Hanging (In-Line)	6 ft	1.8 m	72 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008024i	Free Hanging (In-Line)		609.6 mm	24 "	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008108i	Free Hanging (In-Line)	9 ft	2.7 m	108 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008002M	Free Hanging (In-Line)	6.6 ft	2 m	78.7 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F00082.5M	Free Hanging (In-Line)	8.2 '	2.5 m	98.4 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F00081.5M	Free Hanging (In-Line)	4.9 ft	1.5 m	59.1 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female
Amphenol Custom Cable Q-0L05F0008006i	Free Hanging (In-Line)		152.4 mm	6 in	50 Ohms	BNC to Fakra	RG-58	Fakra Jack	Free Hanging (In-Line)	Male	Black	Shielded	BNC Plug	3 GHz	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.17
		25	$ 52.13
		50	$ 51.09
		100	$ 50.05
		250	$ 49.01

Description

General part information

Q-0L05F0 Series

Cable Assembly Coaxial BNC to Fakra RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
