Q817C

Active

QT Brightek (QTB)

OPTOISOLATOR 5KV 1CH TRANS 4-DIP

Search across all available documentation for this part.

Active

QT Brightek (QTB)

OPTOISOLATOR 5KV 1CH TRANS 4-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	Q817C

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	400 %
Current Transfer Ratio (Min) [Min]	200 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ) [custom]	8 µs
Rise / Fall Time (Typ) [custom]	6 µs
Supplier Device Package	4-DIP
Vce Saturation (Max)	200 mV
Voltage - Forward (Vf) (Typ)	1.24 V
Voltage - Output (Max) [Max]	35 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Transfer Ratio (Min) [Min]	Mounting Type	Current Transfer Ratio (Max)	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel	Output Type	Number of Channels	Vce Saturation (Max)	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Voltage - Output (Max) [Max]	Input Type	Package / Case
QT Brightek (QTB) Q817C	-55 °C	110 °C	200 %	Through Hole	400 %	60 mA	50 mA	1.81 mOhm	1	200 mV	1.24 V	8 µs	6 µs	4-DIP	35 V	DC	4-DIP (0.300" 7.62mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

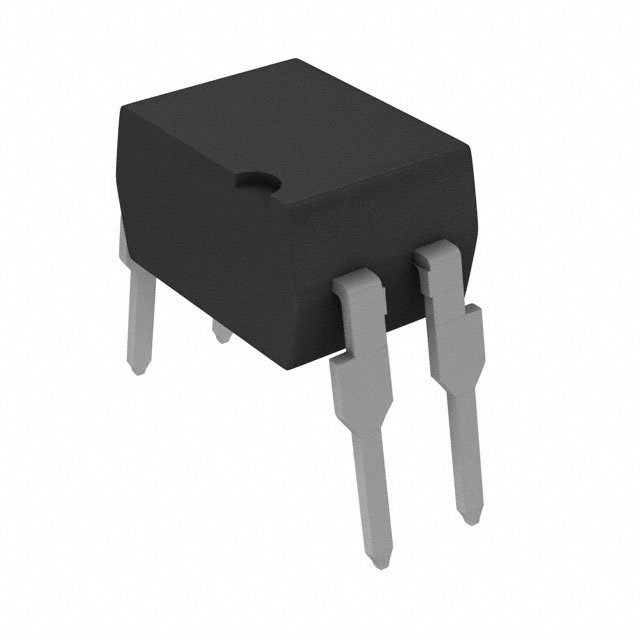

Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
