0394210006

Active

Molex

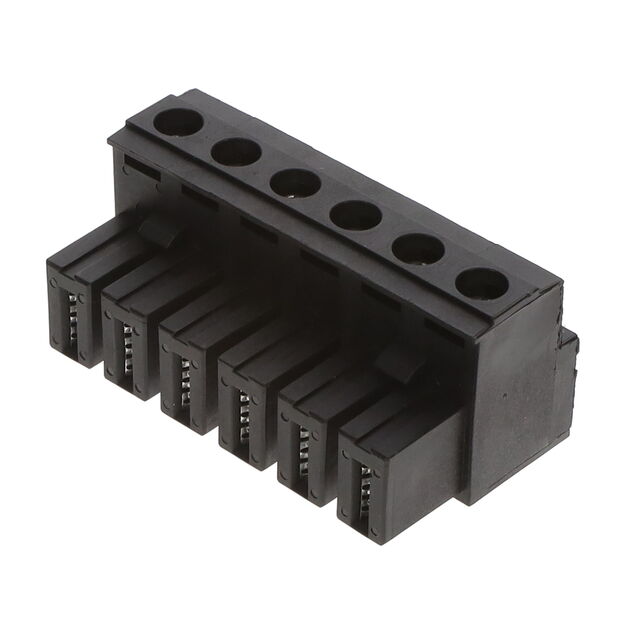

TERM BLOCK PLUG 6POS STR 12MM

Deep-Dive with AI

Search across all available documentation for this part.

0394210006

Active

Molex

TERM BLOCK PLUG 6POS STR 12MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0394210006

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	85 A
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height [z]	33.3 mm
Insulation Height [z]	1.311 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature	130 °C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Positions Per Level	6
Screw Size	M5
Termination Style	Screw - Rising Cage Clamp
Type	Plug, Female Sockets
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	3 AWG

039421 Series

Part	Type	Material Flammability Rating	Current - UL	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Material	Housing Material	Mounting Type	Number of Levels	Operating Temperature	Number of Positions	Contact Mating Finish	Color	Screw Size	Termination Style	Insulation Height [z]	Insulation Height [z]	Positions Per Level
Molex 0394210010	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	10	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	10
Molex 0394210006	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	6	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	6
Molex 0394210003	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C		Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	3
Molex 0394210008	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	8	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	8
Molex 0394210004	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	4	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	4
Molex 0394210002	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	2	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	2
Molex 0394210009	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	9	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	9
Molex 0394210007	Plug Female Sockets	UL94 V-0	85 A	12 mm	0.472 in	14 AWG	3 AWG	Copper Alloy	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	130 °C	7	Tin	Black	M5	Screw - Rising Cage Clamp	33.3 mm	1.311 in	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.34
		10	$ 42.75
		25	$ 41.17
		60	$ 40.54
		120	$ 39.59

Description

General part information

039421 Series

6 Position Terminal Block Plug, Female Sockets 0.472" (12.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
