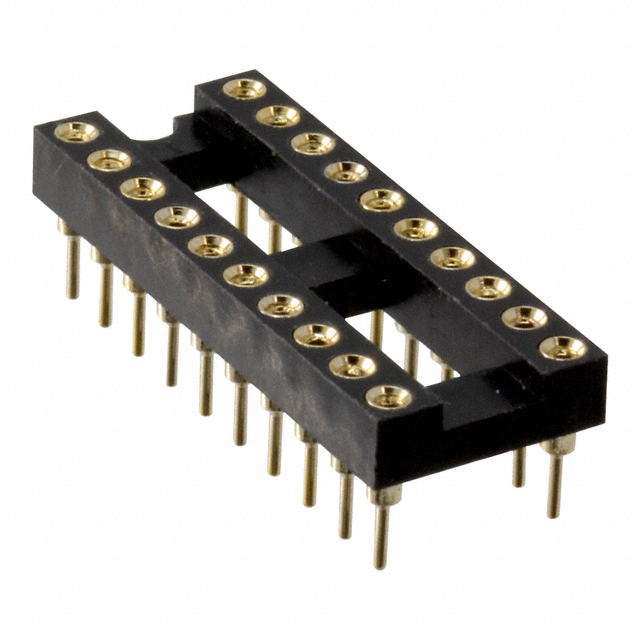

SA203040
ActiveOn Shore Technology Inc.
CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA203040
ActiveOn Shore Technology Inc.
CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA203040 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 2.03 µm |
| Contact Finish Thickness - Post | 80 µin |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyester, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.12 | |
| 24 | $ 0.90 | |||
| 48 | $ 0.85 | |||
| 72 | $ 0.83 | |||
| 120 | $ 0.80 | |||
| 264 | $ 0.76 | |||
| 504 | $ 0.72 | |||
| 1008 | $ 0.69 | |||
| 2520 | $ 0.64 | |||
Description
General part information
SA20304 Series
20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
