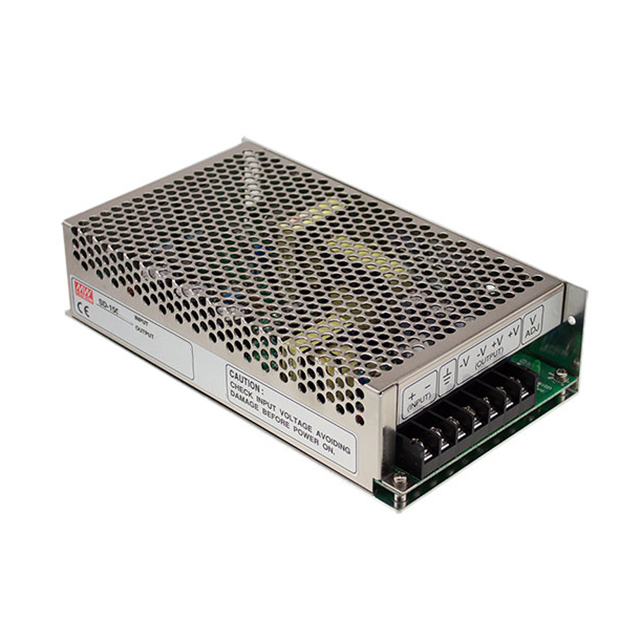

SD-150C-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD-150C-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 12V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-150C-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | 77 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 7.83 in |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [y] | 4.33 " |
| Size / Dimension [y] | 110 mm |
| Size / Dimension [z] | 1.97 " |
| Size / Dimension [z] | 50 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.79 | |
| 5 | $ 52.59 | |||
| 10 | $ 51.27 | |||
| 25 | $ 49.58 | |||
Description
General part information
SD-150C Series
Enclosed DC DC Converter 1 Output 12V 12.5A 72V Input
