Q-6805E0005036I

Active

Amphenol Custom Cable

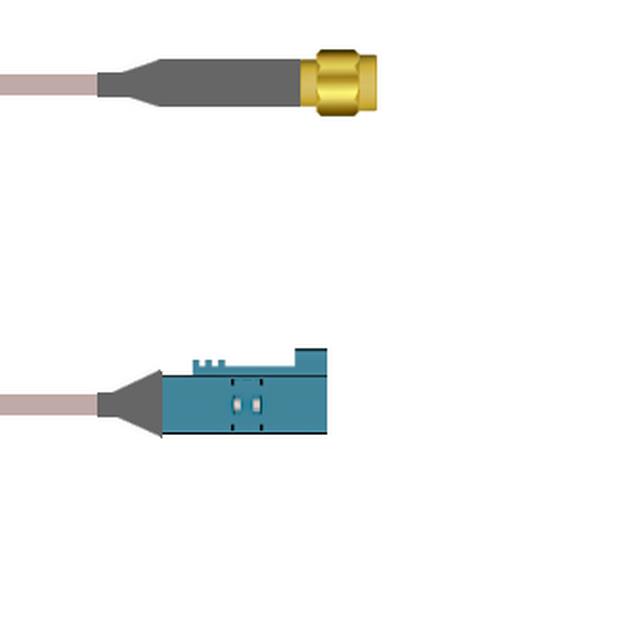

COAX CBL RP-SMA TO FAKRA III 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-6805E0005036I

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO FAKRA III 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6805E0005036I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra I (Gen 1.0) Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	RP-SMA to Fakra III

Q-6805E0 Series

Part	1st Connector	1st Connector Mounting Type	Cable Impedance	Color	Style	Features	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Frequency - Max [Max]	Connector Impedance	2nd Connector	Length	Length	Length	Cable Type	2nd Contact Gender
Amphenol Custom Cable Q-6805E00052.5M	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack	8.2 '	98.4 in	2.5 m	RG-316	Female
Amphenol Custom Cable Q-6805E0005009I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack		9 "	228.6 mm	RG-316	Female
Amphenol Custom Cable Q-6805E0005108I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack	9 ft	108 in	2.7 m	RG-316	Female
Amphenol Custom Cable Q-6805E00051.5M	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack	4.9 ft	59.1 in	1.5 m	RG-316	Female
Amphenol Custom Cable Q-6805E0005036I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack		36 in	91.44 cm	RG-316	Female
Amphenol Custom Cable Q-6805E0005024I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack		24 "	609.6 mm	RG-316	Female
Amphenol Custom Cable Q-6805E0005048I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack	4 ft	48 in	1200 mm	RG-316	Female
Amphenol Custom Cable Q-6805E00050.5M	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack		19.69 "	50 cm	RG-316	Female
Amphenol Custom Cable Q-6805E0005012I	RP-SMA Plug	Free Hanging (In-Line)	50 Ohms	Copper	RP-SMA to Fakra III	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3 GHz	50 Ohms	Fakra I (Gen 1.0) Jack		12 "	304.8 mm	RG-316	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 60.36
		25	$ 59.18
		50	$ 58.00
		100	$ 56.83
		250	$ 55.64

Description

General part information

Q-6805E0 Series

Cable Assembly Coaxial RP-SMA to Fakra III RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
