T9GS2L24-12

Active

TE Connectivity Potter & Brumfield Relays

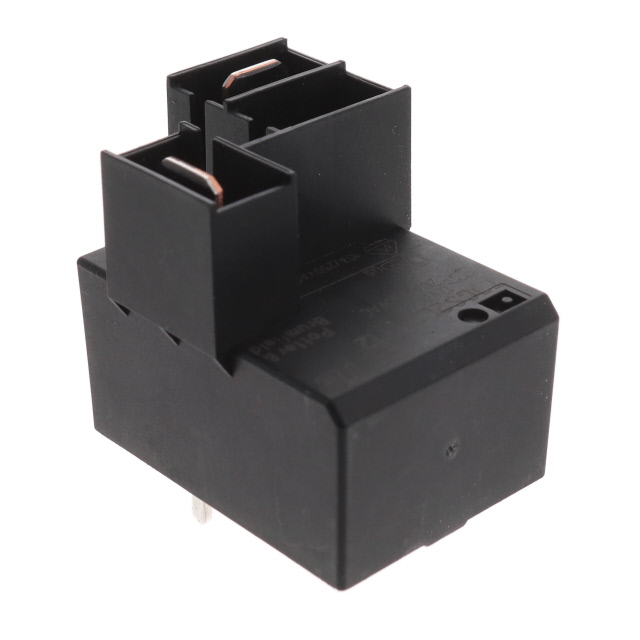

RELAY GEN PURPOSE SPST 20A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9GS2L24-12

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 20A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9GS2L24-12

Approval Agency	CQC, VDE, cURus
Coil Current	75 mA
Coil Insulation	Class F
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NC (1 Form B)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching [Max]	9600 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Sealed - Fully
Switching Voltage	480 VAC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

T9GS2 Series

Part	Approval Agency	Seal Rating	Operate Time	Coil Current	Termination Style	Switching Voltage	Coil Resistance	Mounting Type	Coil Insulation	Contact Form	Release Time	Load - Max Switching [Max]	Relay Type	Must Release Voltage	Contact Material	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Coil Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays T9GS2L14-9	CQC cURus VDE	Sealed - Fully	15 ms	100 mA	PC Pin	480 VAC	90 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	0.9 VDC	Silver Tin Oxide (AgSnO)	6.75 VDC	20 A	-40 °C	105 ░C	Non Latching	9 VDC
TE Connectivity Potter & Brumfield Relays T9GS2L24-24	CQC cURus VDE	Sealed - Fully	15 ms	37.5 mA	PC Pin Quick Connect	480 VAC	640 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	2.4 VDC	Silver Tin Oxide (AgSnO)	18 VDC	20 A	-40 °C	105 ░C	Non Latching	24 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L24-12	CQC cURus VDE	Sealed - Fully	15 ms	75 mA	PC Pin Quick Connect	480 VAC	160 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	1.2 VDC	Silver Tin Oxide (AgSnO)	9 VDC	20 A	-40 °C	105 ░C	Non Latching	12 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L14-24	CQC cURus VDE	Sealed - Fully	15 ms	37.5 mA	PC Pin	480 VAC	640 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	2.4 VDC	Silver Tin Oxide (AgSnO)	18 VDC	20 A	-40 °C	105 ░C	Non Latching	24 VDC
TE Connectivity Potter & Brumfield Relays T9GS2L24-110	CQC cURus VDE	Sealed - Fully	15 ms	8.2 mA	PC Pin Quick Connect	480 VAC	13.4 kOhms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	11 VDC	Silver Tin Oxide (AgSnO)	82.5 VDC	20 A	-40 °C	105 ░C	Non Latching	110 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L24-48	CQC cURus VDE	Sealed - Fully	15 ms	18.8 mA	PC Pin Quick Connect	480 VAC	2500 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	4.8 VDC	Silver Tin Oxide (AgSnO)	36 VDC	20 A	-40 °C	105 ░C	Non Latching	48 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L24-22	CQC cURus VDE	Sealed - Fully	15 ms	41 mA	PC Pin Quick Connect	480 VAC	538 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	2.2 VDC	Silver Tin Oxide (AgSnO)	16.5 VDC	20 A	-40 °C	105 ░C	Non Latching	22 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L24-18	CQC cURus VDE	Sealed - Fully	15 ms	50 mA	PC Pin Quick Connect	480 VAC	360 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	1.8 VDC	Silver Tin Oxide (AgSnO)	13.5 VDC	20 A	-40 °C	105 ░C	Non Latching	18 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS2L14-18	CQC cURus VDE	Sealed - Fully	15 ms	50 mA	PC Pin	480 VAC	360 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	1.8 VDC	Silver Tin Oxide (AgSnO)	13.5 VDC	20 A	-40 °C	105 ░C	Non Latching	18 VDC
TE Connectivity Potter & Brumfield Relays T9GS2L14-22	CQC cURus VDE	Sealed - Fully	15 ms	41 mA	PC Pin	480 VAC	538 Ohms	Through Hole	Class F	SPST-NC (1 Form B)	22 ms	9600 VA	General Purpose	2.2 VDC	Silver Tin Oxide (AgSnO)	16.5 VDC	20 A	-40 °C	105 ░C	Non Latching	22 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.29
		10	$ 3.08
		30	$ 2.74
		50	$ 2.60
		100	$ 2.47
		250	$ 2.41

Description

General part information

T9GS2 Series

General Purpose Relay SPST-NC (1 Form B) 12VDC Coil Through Hole
