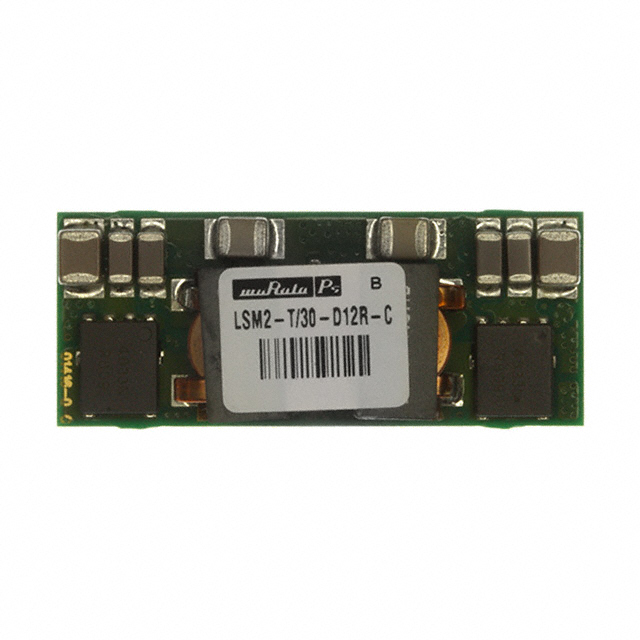

LSM2-T/30-D12R-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-5V 125W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-5V 125W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Control Features	Applications	Features	Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Mounting Type	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. LSM2-T/10-D12-C	1	Active High Enable	ITE (Commercial)	Remote On/Off SCP UVLO	Non-Isolated PoL Module	95.8 %	0.34 in	0.53 in	13.5 mm	33 mm	1.3 "	8.6 mm	10 A	Surface Mount	8-SMD Module	50 W	13.2 V	0.75 V	5 V	8.3 V	85 °C	-40 °C
Murata Power Solutions Inc. LSM2-T/30-D12R-C	1	Active Low Enable	ITE (Commercial)	OCP Remote On/Off SCP UVLO	Non-Isolated PoL Module	94 %	0.34 in	0.53 in	13.5 mm	33 mm	1.3 "	8.6 mm	30 A	Surface Mount	9-SMD Module	125 W	13.2 V	0.8 V	5 V	8.3 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5V 30A 8.3V - 13.2V Input
