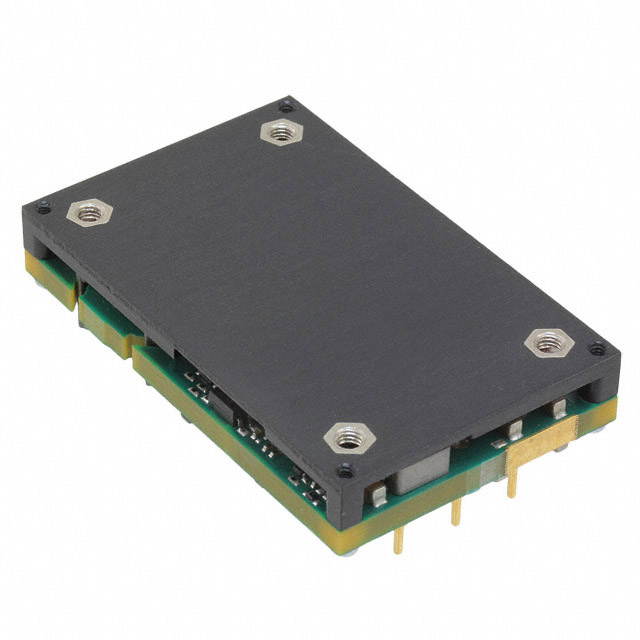

DBQ0135V2P2BC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 420W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 420W

Technical Specifications

Parameters and characteristics for this part

Specification	DBQ0135V2P2BC

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	35 A
Efficiency	95.2 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-DIP Module (15 Leads), 1/4 Brick
Power (Watts)	420 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Type	Intermediate Bus Converter
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Control Features	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Voltage - Output 1	Voltage - Isolation	Mounting Type	Features
Murata Power Solutions Inc. DBQ0135V2P2BC	Active High Enable	36 V	85 °C	-40 °C	ITE (Commercial)	420 W	35 A	95.2 %	75 V	1	Intermediate Bus Converter	2.3 in	13.2 mm	36.8 mm	1.45 in	0.52 "	58.4 mm	16-DIP Module (15 Leads) 1/4 Brick	12 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. DBQ0135V2NC	Active Low Enable	36 V	85 °C	-40 °C	ITE (Commercial)	420 W	35 A	95.2 %	75 V	1	Intermediate Bus Converter	2.3 in	12.2 mm	36.8 mm	1.45 in	0.48 in	58.4 mm	16-DIP Module (15 Leads) 1/4 Brick	12 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. DBQ0135V2NSC	Active Low Enable	36 V	85 °C	-40 °C	ITE (Commercial)	420 W	35 A	95.2 %	75 V	1	Intermediate Bus Converter	2.3 in	12.2 mm	36.8 mm	1.45 in	0.48 in	58.4 mm	16-DIP Module (15 Leads) 1/4 Brick	12 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. DBQ0135V2PC	Active High Enable	36 V	85 °C	-40 °C	ITE (Commercial)	420 W	35 A	95.2 %	75 V	1	Intermediate Bus Converter	2.3 in	12.2 mm	36.8 mm	1.45 in	0.48 in	58.4 mm	16-DIP Module (15 Leads) 1/4 Brick	12 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 90.70

General part information

Intermediate Bus Converter DC DC Converter 1 Output 12V 35A 36V - 75V Input
