8501XDO60V53

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

NEMA CONTROL RELAY, TYPE X, MACH

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

NEMA CONTROL RELAY, TYPE X, MACH

Technical Specifications

Parameters and characteristics for this part

Part	Load - Max Switching	Switching Voltage	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Operate Time	Coil Type	Relay Type	Mounting Type	Termination Style	Contact Rating (Current)	Must Operate Voltage	Coil Voltage	Contact Form	Contact Form	Load - Max Switching [Max]	Coil Voltage [Max]	Coil Voltage [Min]
SQUARE D BY SCHNEIDER ELECTRIC 8501XDO80V53	6000 VA	600 VAC	CSA UL	-40 °C	71 °C	21 ms	37 ms	Non Latching	General Purpose	Chassis Mount	Screw Terminal	10 A	19.2 VDC	24 VDC	8PST-NO	8 Form A
SQUARE D BY SCHNEIDER ELECTRIC 8501XDO80V56	6000 VA	600 VAC	CE CSA UL	-40 °C	71 °C	21 ms	37 ms	Non Latching	General Purpose	Chassis Mount	Screw Terminal	10 A		48 VDC	8PST-NO	8 Form A
SQUARE D BY SCHNEIDER ELECTRIC 8501XDO60V53	6000 VA	600 VAC	CE CSA UL	-40 °C	71 °C	21 ms	37 ms	Non Latching	General Purpose	Chassis Mount	Screw Terminal	10 A	19.2 VDC	24 VDC	6PST-NO (6 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XDO80XDLV53		250 VDC	CE CSA UL	-40 °C	71 °C	21 ms	37 ms	Latching Single Coil	General Purpose	Chassis Mount	Screw Terminal	10 A		24 VDC	8PST-NO	8 Form A	2500 VA
SQUARE D BY SCHNEIDER ELECTRIC 8501XDO60V62	6000 VA	600 VAC	CSA UL	-40 °C	71 °C	21 ms	37 ms	Non Latching	General Purpose	Chassis Mount	Screw Terminal	10 A			6PST-NO (6 Form A)			125 VDC	115 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 433.84

General part information

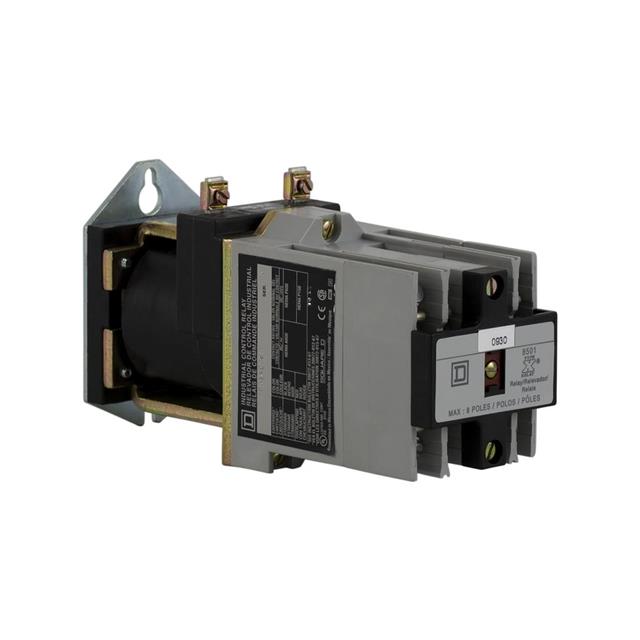

General Purpose Relay 6PST-NO (6 Form A) 24VDC Coil Chassis Mount
