TGH-0220-04

Active

t-Global Technology

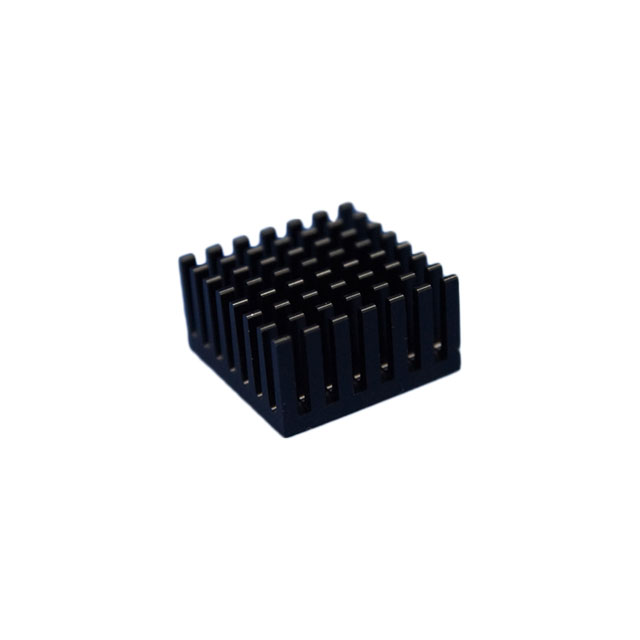

ALUMINIUM HEAT SINK 22X22MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 22X22MM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Material Finish	Shape	Fin Height [z]	Fin Height [z]	Material	Width [x]	Width [x]	Length	Length	Length [x]
t-Global Technology TGH-0220-04	Top Mount	Black Anodized	Pin Fins Square	11.7 mm	0.461 in	Aluminum	22 mm	0.866 "	0.866 "	22 mm
t-Global Technology TGH-0220-07	Top Mount		Rectangular Fins	14.5 mm	0.571 in	Aluminum	22 mm	0.866 "		45 mm	1.772 "
t-Global Technology TGH-0220-02	Top Mount	Black Anodized	Rectangular Pin Fins	11.7 mm	0.461 in	Aluminum	22 mm	0.866 "	0.59 in	15 mm
t-Global Technology TGH-0220-06	Top Mount	Black Anodized	Rectangular Pin Fins	9 mm	0.354 in	Aluminum	22 mm	0.866 "	1.063 in	27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Aluminum Top Mount
