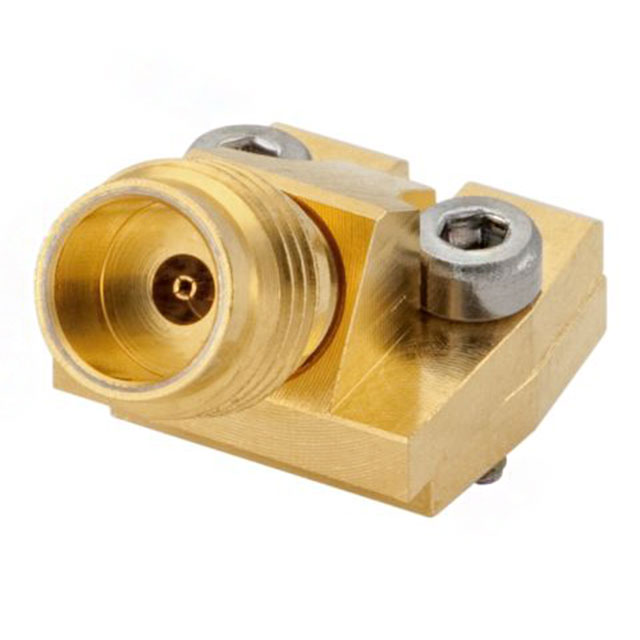

08K80F-40ML5
ActiveRosenberger
SMD CONNECTOR JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
08K80F-40ML5
ActiveRosenberger
SMD CONNECTOR JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 08K80F-40ML5 |
|---|---|
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 1.85 mm |
| Connector Type | Female Socket, Jack |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 70 GHz |
| Impedance | 50 Ohms |
| Includes | 2 Screws, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Screw |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 217.79 | |
| 10 | $ 170.52 | |||
| 25 | $ 155.60 | |||
| 50 | $ 145.56 | |||
Description
General part information
08K80F Series
1.85mm Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle
