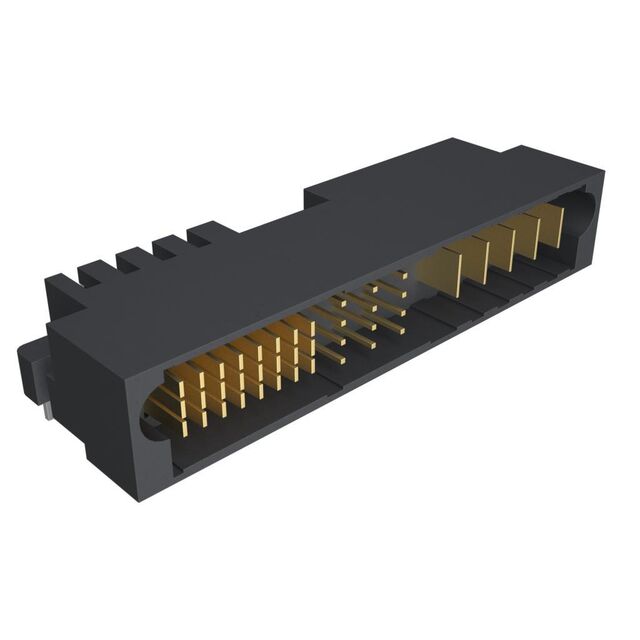

10106262-4506001LF
ActiveAmphenol ICC (FCI)
CONN BLADE PWR
Deep-Dive with AI
Search across all available documentation for this part.
10106262-4506001LF
ActiveAmphenol ICC (FCI)
CONN BLADE PWR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10106262-4506001LF |
|---|---|
| Color | Black |
| Connector Style | Blade Power |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical [custom] | 24 |
| Contact Layout, Typical [custom] | 9 |
| Current Rating (Amps) | 58 A |
| Features | Board Lock, Mating Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 33 |
| Number of Positions Loaded | 21 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
10106262 Series
| Part | Number of Positions | Pitch [x] | Pitch [x] | Material Flammability Rating | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Features | Contact Finish | Number of Positions Loaded | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Connector Style | Termination | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 18 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | 58 A | Board Lock Mating Guide | Gold | All | 6 | 12 | Blade Power | Solder | |
Amphenol ICC (FCI) | 33 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | 58 A | Mating Guide | Gold | 13 | 20 | Blade Power | Solder | 18 | |
Amphenol ICC (FCI) | 33 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | 58 A | Board Lock Mating Guide | Gold | All | 9 | 24 | Blade Power | Solder | |
Amphenol ICC (FCI) | 50 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | 58 A | Board Lock Mating Guide | Gold | 26 | 24 | Blade Power | Solder | 39 | |
Amphenol ICC (FCI) | 52 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | Board Lock Mating Guide | Gold or Gold GXT™ | All | Solder | |||||
Amphenol ICC (FCI) | ||||||||||||||||||||
Amphenol ICC (FCI) | 75 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | Board Lock Mating Guide | Gold or Gold GXT™ | All | 11 | 64 | Blade Power | Solder | ||
Amphenol ICC (FCI) | 33 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | 58 A | Board Lock Mating Guide | Gold | 9 | 24 | Blade Power | Solder | 21 | |
Amphenol ICC (FCI) | 24 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | Board Lock Mating Guide | Gold or Gold GXT™ | All | Solder | |||||
Amphenol ICC (FCI) | 35 | 2.54 mm | 0.1 in | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Black | 125 °C | -40 °C | Board Edge Right Angle Through Hole | Board Lock Mating Guide | Gold or Gold GXT™ | All | 11 | 24 | Blade Power | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 198 | $ 7.24 | |
| 594 | $ 6.72 | |||
Description
General part information
10106262 Series
33 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Black Blade Power
