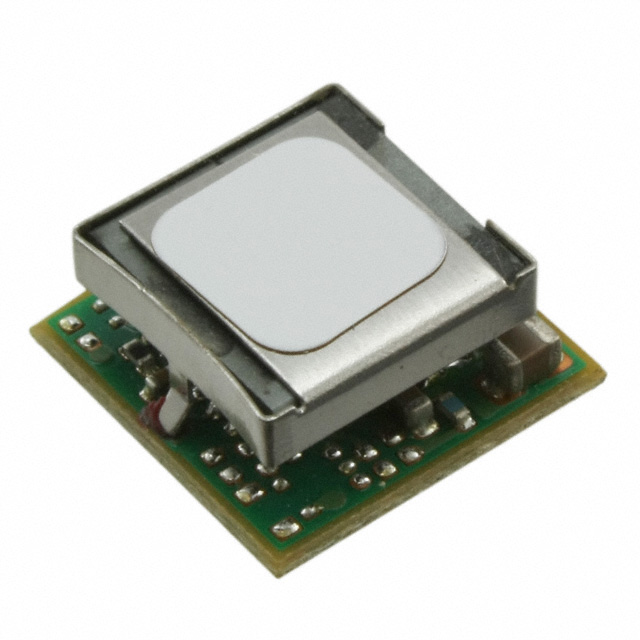

APTH006A0X-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-3.63V 22W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APTH006A0X-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 93 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 22 W |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 0.29 " |
| Size / Dimension [z] | 7.3 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.05 | |
| 5 | $ 12.30 | |||
| 10 | $ 11.99 | |||
| 25 | $ 11.60 | |||
| 50 | $ 11.31 | |||
| 100 | $ 11.02 | |||
| Digi-Reel® | 1 | $ 13.05 | ||
| 5 | $ 12.30 | |||
| 10 | $ 11.99 | |||
| 25 | $ 11.60 | |||
| 50 | $ 11.31 | |||
| 100 | $ 11.02 | |||
| Tape & Reel (TR) | 400 | $ 10.23 | ||
| 800 | $ 9.97 | |||
Description
General part information
APTH006 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 6A 2.4V - 5.5V Input
