OA172LFG221TXC

Active

Orion Fans

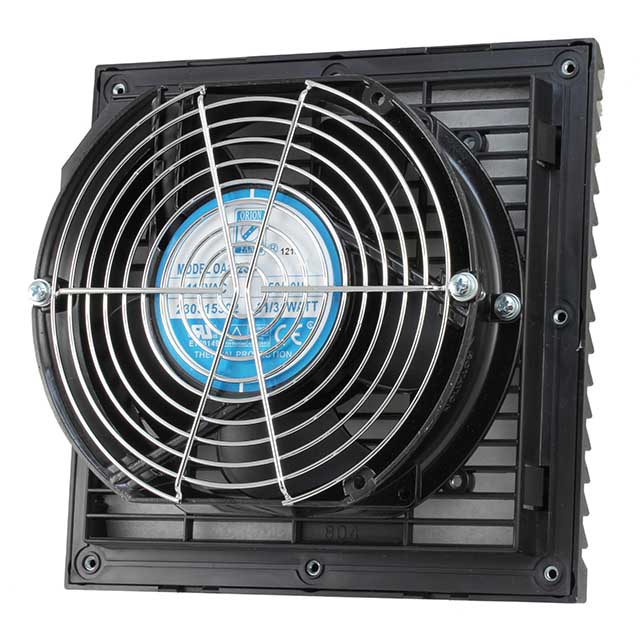

LOUVERED FILTER FAN HINGED GUARD KIT WITH 172 MM FAN INSTALLED, 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN

OA172LFG221TXC

Active

Orion Fans

LOUVERED FILTER FAN HINGED GUARD KIT WITH 172 MM FAN INSTALLED, 230V

Deep-Dive with AI

DocumentsOne Page Summary EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172LFG221TXC

Air Flow	8.4 mł/min
Air Flow	300 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Kit
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	61 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
RPM	3300 RPM
Size / Dimension [x]	204 mm
Size / Dimension [y]	204 mm
Static Pressure	194.3 Pa
Static Pressure	0.78 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Width [x]	77.5 mm

OA172LF Series

Part	Termination	Air Flow	Air Flow	RPM	Material - Blade	Material - Frame	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Approval Agency	Features	Bearing Type	Width [x]	Voltage - Rated	Lifetime @ Temp.	Noise	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Size / Dimension [z]	Size / Dimension
Orion Fans OA172LFG221TXC	2 Terminals	8.4 mł/min	300 CFM	3300 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	194.3 Pa	0.78 in H2O	204 mm	204 mm	50 W	cURus TUV	Capacitor Kit	Ball	77.5 mm	230 VAC	60000 Hrs	61 dB(A)
Orion Fans OA172LFG221T	2 Terminals	6.58 m³/min	235 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	174.4 Pa	0.7 in H2O	204 mm	204 mm	35 W	cURus TUV	Capacitor Kit	Ball	77.5 mm	230 VAC	60000 Hrs	52 dB	260 VAC	160 VAC
Orion Fans OA172LFGH221TXC	2 Terminals or 2 Wire Leads	8.4 mł/min	300 CFM	3300 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	194.3 Pa	0.78 in H2O		207 mm	50 W	cURus TUV	Capacitor Kit	Ball		230 VAC	60000 Hrs	61 dB(A)			112.3 mm	207 mm	Square
Orion Fans OA172LFGS221T	2 Terminals or 2 Wire Leads	6.58 m³/min	235 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	174.4 Pa	0.7 in H2O		209 mm	35 W	cURus TUV	Capacitor Kit	Ball		230 VAC	60000 Hrs	52 dB	260 VAC	160 VAC	101.3 mm	209 mm
Orion Fans OA172LFGH111T	2 Terminals or 2 Wire Leads	6.58 m³/min	235 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	174.4 Pa	0.7 in H2O		207 mm	35 W	cURus TUV	Capacitor Kit	Ball		115 VAC	60000 Hrs	52 dB	130 VAC	80 VAC	112.3 mm	207 mm	Square
Orion Fans OA172LFGH221T	2 Terminals or 2 Wire Leads	6.58 m³/min	235 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	174.4 Pa	0.7 in H2O		207 mm	35 W	cURus TUV	Capacitor Kit	Ball		230 VAC	60000 Hrs	52 dB	260 VAC	160 VAC	112.3 mm	207 mm	Square
Orion Fans OA172LFGS111T	2 Terminals or 2 Wire Leads	6.58 m³/min	235 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	174.4 Pa	0.7 in H2O		209 mm	35 W	cURus TUV	Capacitor Kit	Ball		115 VAC	60000 Hrs	52 dB	130 VAC	80 VAC	101.3 mm	209 mm
Orion Fans OA172LFG111TXC	2 Terminals	8.4 mł/min	300 CFM	3300 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	194.3 Pa	0.78 in H2O	204 mm	204 mm	50 W	cURus TUV	Capacitor Kit	Ball	77.5 mm	120 VAC	60000 Hrs	61 dB(A)	125 VAC	100 VAC
Orion Fans OA172LFGH111TXC	2 Terminals or 2 Wire Leads	8.4 mł/min	300 CFM	3300 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	194.3 Pa	0.78 in H2O		207 mm	50 W	cURus TUV	Capacitor Kit	Ball		120 VAC	60000 Hrs	61 dB(A)	125 VAC	100 VAC	112.3 mm	207 mm	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 65.36
Newark	Each	1	$ 77.04
		1000	$ 70.62

Description

General part information

OA172LF Series

Fan Tubeaxial 230VAC Square - 204mm L x 204mm H Ball 300.0 CFM (8.40m³/min) 2 Terminals

Documents

Technical documentation and resources

One Page Summary EN

Datasheet
