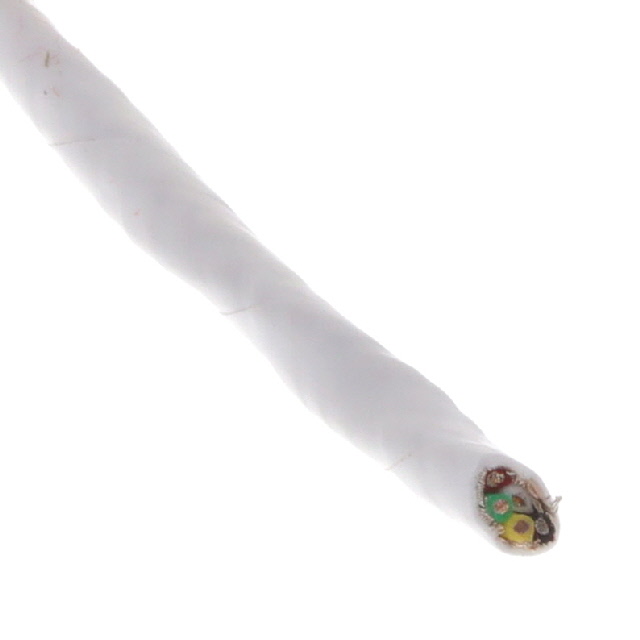

2827/5 WH005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 20 AWG, 0.62 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 20 AWG, 0.62 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	2827/5 WH005

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	5.16 mm
Jacket (Insulation) Diameter [diameter]	0.203 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0118 in
Jacket (Insulation) Thickness	0.3 mm
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	90 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Shield Coverage	Conductor Insulation	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Number of Conductors	Length [x]	Length [x]	Shield Material	Cable Type
ALPHA WIRE 2827/5 WH005	Copper Silver Coated	20 AWG	Polytetrafluoroethylene (PTFE)	0.0118 in	0.3 mm	Communication Control	90 %	Polytetrafluoroethylene (PTFE)	600 V	5.16 mm	0.203 in	-55 °C	200 °C	19	32 AWG	Braid	5	30.5 m	100 ft	Copper Silver Coated	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 3022.93
		3	$ 2826.64
Newark	Spool of 100	1	$ 3989.86

General part information

5 Conductor Multi-Conductor Cable White 20 AWG Braid 100.0' (30.5m)
