TFT20030 NA001

Active

ALPHA WIRE

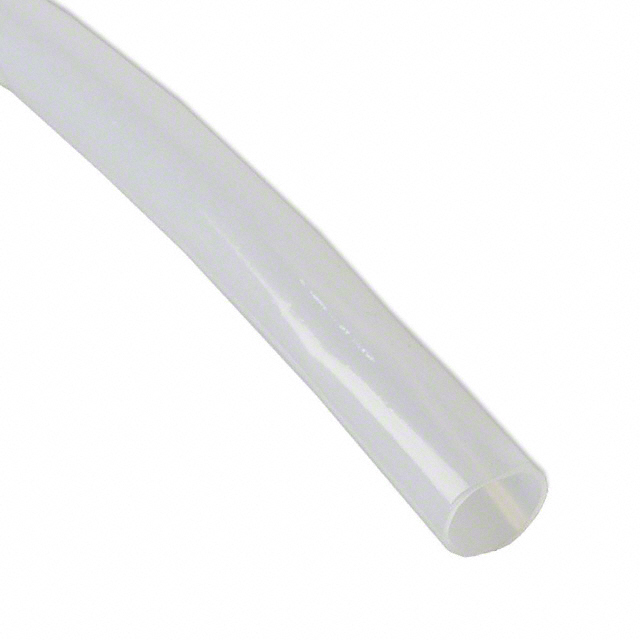

TUBING 0.01" ID PTFE 1000' NAT

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.01" ID PTFE 1000' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	TFT20030 NA001

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	0.01 in
Diameter - Inside [diameter]	0.25 mm
Diameter - Outside [diameter]	0.033 "
Diameter - Outside [diameter]	0.84 mm
Environment Protection	Corrosion Resistant
Heat Protection	Heat Resistant
Length	1000 ft
Length	304.8 m
Liquid Protection	Oil Resistant
Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-103 °F
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness	0.23 mm
Wall Thickness	0.009 in

Part	Abrasion Protection	Color	Material Flammability Rating	Length	Length	Type Attributes	Wall Thickness	Wall Thickness	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Liquid Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Heat Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material	Environment Protection	Type	Length [x]	Length [x]
ALPHA WIRE TFT20030 NA005	Abrasion Resistant	Natural	UL94 V-0	100 ft	30.48 m	Smooth	0.23 mm	0.009 in	0.01 in	0.25 mm	Oil Resistant	0.033 "	0.84 mm	Heat Resistant	260 ░C	-103 °F	Polytetrafluoroethylene (PTFE)	Corrosion Resistant	Solid Tubing
ALPHA WIRE TFT20030 NA001	Abrasion Resistant	Natural	UL94 V-0	1000 ft	304.8 m	Smooth	0.23 mm	0.009 in	0.01 in	0.25 mm	Oil Resistant	0.033 "	0.84 mm	Heat Resistant	260 ░C	-103 °F	Polytetrafluoroethylene (PTFE)	Corrosion Resistant	Solid Tubing
ALPHA WIRE TFT20030 NA002	Abrasion Resistant	Natural	UL94 V-0			Smooth	0.23 mm	0.009 in	0.01 in	0.25 mm	Oil Resistant	0.033 "	0.84 mm	Heat Resistant	260 ░C	-103 °F	Polytetrafluoroethylene (PTFE)	Corrosion Resistant	Solid Tubing	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Polytetrafluoroethylene (PTFE) Smooth Solid Tubing 0.010" (0.25mm) 1000' (304.80m)
