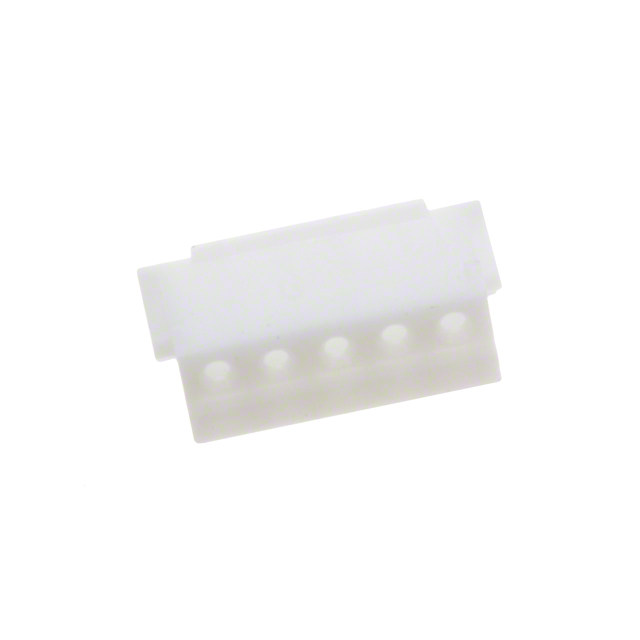

15CH-A-05

Active

Adam Tech

CONN RCPT HSG 5POS 1.50MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 5POS 1.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Color	Pitch [x]	Pitch [x]	Contact Type	Note	Number of Positions	Connector Type	Insulation Material	Number of Rows	Fastening Type
Adam Tech 15CH-A-07	-25 °C	85 °C	Crimp	Free Hanging (In-Line)	Natural	1.5 mm	0.059 in	Female Socket	Contacts Not Included	7	Receptacle	Polyamide (PA66) Nylon 6/6	1	Friction Lock
Adam Tech 15CH-A-05	-25 °C	85 °C	Crimp	Free Hanging (In-Line)	Natural	1.5 mm	0.059 in	Female Socket	Contacts Not Included		Receptacle	Polyamide (PA66) Nylon 6/6	1	Friction Lock
Adam Tech 15CH-A-09	-25 °C	85 °C	Crimp	Free Hanging (In-Line)	Natural	1.5 mm	0.059 in	Female Socket	Contacts Not Included	9	Receptacle	Polyamide (PA66) Nylon 6/6	1	Friction Lock
Adam Tech 15CH-A-04	-25 °C	85 °C	Crimp	Free Hanging (In-Line)	Natural	1.5 mm	0.059 in	Female Socket	Contacts Not Included	4	Receptacle	Polyamide (PA66) Nylon 6/6	1	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
