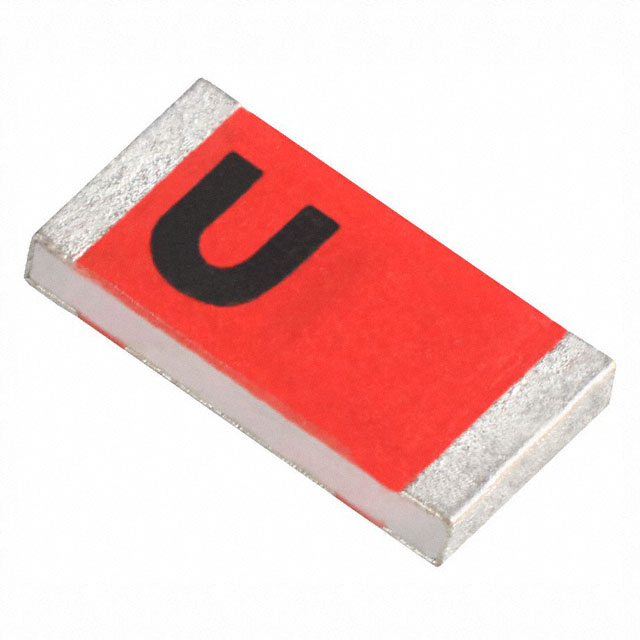

H2U94W1H1G0300
ActiveUnictron Technologies Corporation
WIFI+GNSS 1560-1610 2400-2500MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2U94W1H1G0300 |
|---|---|
| Antenna Type | Chip |
| Applications | Zigbee™, GPS, Bluetooth, Wi-Fi |
| Frequency (Center/Band) | 2.45 GHz, 1.575 GHz |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.8 dBi, 1.3 dBi |
| Grade | Automotive |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Qualification | AEC-Q200 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.20 | |
| Digi-Reel® | 1 | $ 1.20 | ||
| Tape & Reel (TR) | 5000 | $ 0.48 | ||
| 10000 | $ 0.47 | |||
Description
General part information
H2U94 Series
RF ANTENNA Bluetooth, GPS, Wi-Fi, Zigbee™ Chip Solder Surface Mount
