23S08-3DCG8

Obsolete

Renesas Electronics Corporation

3.3V ZERO DELAY CLOCK MULTIPLIER, SPREAD SPECTRUM COMPATIBLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDT Suffixes Datasheet +1

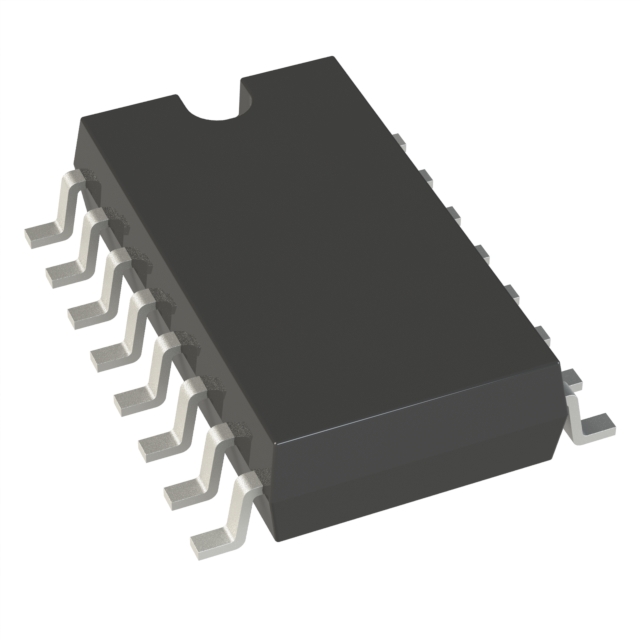

23S08-3DCG8

Obsolete

Renesas Electronics Corporation

3.3V ZERO DELAY CLOCK MULTIPLIER, SPREAD SPECTRUM COMPATIBLE

Deep-Dive with AI

DocumentsIDT Suffixes Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	23S08-3DCG8

Differential - Input:Output	False
Divider/Multiplier	No
Divider/Multiplier	Yes
Frequency - Max [Max]	133.3 MHz
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output	CMOS, LVTTL
Package / Case	16-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
PLL	Yes with Bypass
Ratio - Input:Output	1:8
Supplier Device Package	16-SOIC
Type	Zero Delay Buffer, Clock Multiplier
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

23S08 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Mounting Type	PLL	Supplier Device Package	Number of Circuits	Output	Ratio - Input:Output	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Divider/Multiplier	Divider/Multiplier
Renesas Electronics Corporation 23S08-1HPGG8	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-TSSOP	1	CMOS LVTTL	1:8	0.173 in	16-TSSOP	4.4 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
Renesas Electronics Corporation 23S08-1DCG8	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
Renesas Electronics Corporation 23S08E-3DCGI	85 °C	-40 °C	200 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer	No	Yes
Renesas Electronics Corporation 23S08-1DCGI	85 °C	-40 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
Renesas Electronics Corporation 23S08-2HDCG	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
Renesas Electronics Corporation 23S08-3DCG8	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer	No	Yes
Renesas Electronics Corporation 23S08-1HDCG	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
Renesas Electronics Corporation 23S08E-3DCG	70 °C	0 °C	200 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer	No	Yes
Renesas Electronics Corporation 23S08-3DCGI	85 °C	-40 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer	No	Yes
Renesas Electronics Corporation 23S08-1HDCG8	70 °C	0 °C	133.3 MHz	Surface Mount	Yes with Bypass	16-SOIC	1	CMOS LVTTL	1:8	0.154 in	16-SOIC	3.9 mm	3.6 V	3 V	Clock Multiplier Zero Delay Buffer
