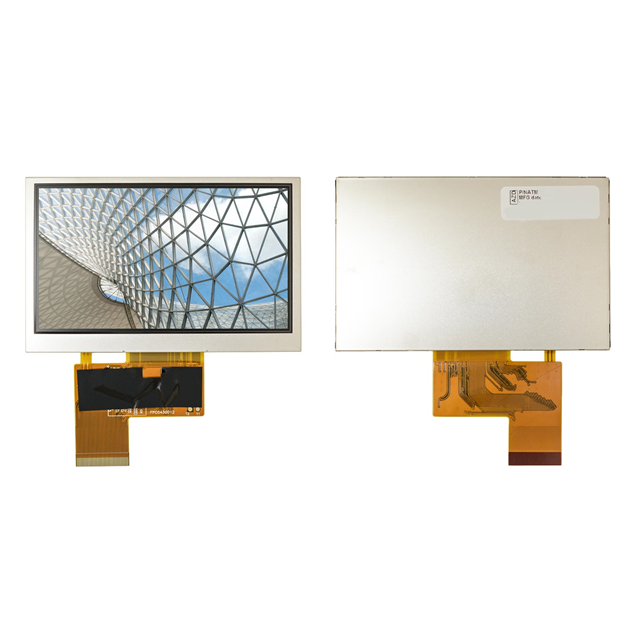

ATM0430D19A

Active

AZ Displays

4.3" TFT LCD 480 X 272

Search across all available documentation for this part.

Active

AZ Displays

4.3" TFT LCD 480 X 272

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [y]	Dot Size [x]	Background Color	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Display Mode	Backlight	Interface	Interface	Display Type	Viewing Area [y]	Viewing Area [x]	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Viewing Area [z]	Dot Size [z]	Controller Type
AZ Displays ATM0430D44-CT	0.11 mm	0.12 mm	White	109.22 mm	4.3 in	Capacitive	Transmissive	LED	Parallel	24 Bit	TFT - Color IPS (In-Plane Switching)	53.86 mm	95.04 mm	0.04 mm	0.11 mm	480	800	Blue Green Red
AZ Displays ATM0430D12			White	109.22 mm	4.3 in		Transmissive	LED	Parallel	24 Bit	TFT - Color	95.04 mm		0.07 mm	0.2 mm	272	480	Blue Green Red	53.56 mm
AZ Displays ATM0430D12B-CTN			White	109.22 mm	4.3 in		Transmissive	LED	24-Bit (RGB)		TFT - Color	55.06 mm	96.24 mm	0.07 mm	0.2 mm	272	480	Blue Green Red
AZ Displays ATM0430D12M-T	0.2 mm			109.22 mm	4.3 in		Transmissive	LED	24-Bit (RGB)		TFT - Color	53.86 mm	95.04 mm	0.07 mm	0.2 mm	272	480	Blue Green Red		0.2 mm
AZ Displays ATM0430D19A	0.2 mm		White	109.22 mm	4.3 in		Transmissive	LED	Parallel	24 Bit	TFT - Color	53.86 mm	95.04 mm	0.07 mm	0.2 mm	272	480	Blue Green Red		0.2 mm
AZ Displays ATM0430D12B			White	109.22 mm	4.3 in		Transmissive	LED	Parallel	24 Bit	TFT - Color	53.86 mm	95.04 mm	0.07 mm	0.2 mm	272	480	Blue Green Red
AZ Displays ATM0430D44	0.11 mm	0.12 mm	White	109.22 mm	4.3 in		Transmissive	LED	Parallel	24 Bit	TFT - Color IPS (In-Plane Switching)	53.86 mm	95.04 mm	0.04 mm	0.11 mm	480	800	Blue Green Red
AZ Displays ATM0430D56-T	0.2 mm			109.22 mm	4.3 in	Resistive	Transmissive	LED			TFT - Color	53.86 mm	95.04 mm	0.07 mm	0.2 mm	272	480	Blue Green Red		0.2 mm	ILI6480

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272
