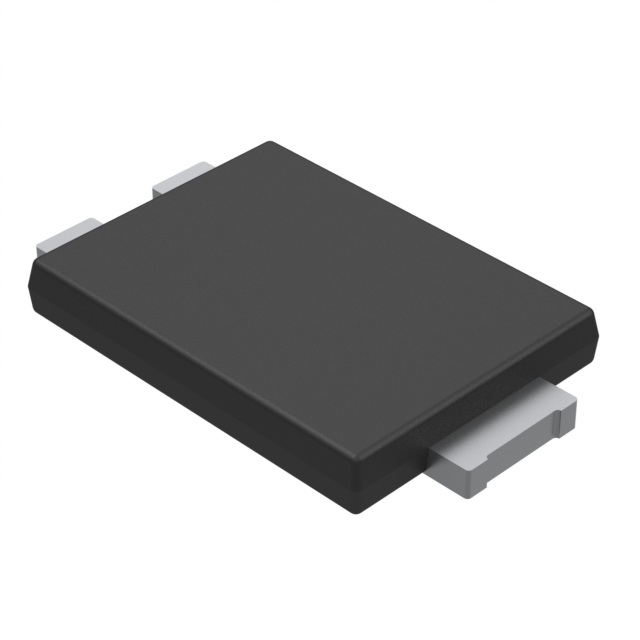

ZXTR2008P5-13
ActiveLDO REGULATOR POS 7.38V TO 9.02V 0.045A 3-PIN POWERDI 5 T/R
Deep-Dive with AI
Search across all available documentation for this part.
ZXTR2008P5-13
ActiveLDO REGULATOR POS 7.38V TO 9.02V 0.045A 3-PIN POWERDI 5 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXTR2008P5-13 |
|---|---|
| Current - Output | 45 mA |
| Current - Quiescent (Iq) | 0.5 mA |
| Current - Supply (Max) [Max] | 900 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | PowerDI™ 5 |
| PSRR | 38 dB |
| Supplier Device Package | PowerDI™ 5 |
| Voltage - Input (Max) [Max] | 100 V |
| Voltage - Output (Min/Fixed) | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.23 | |
| 10000 | $ 0.21 | |||
| 15000 | $ 0.20 | |||
| 25000 | $ 0.20 | |||
| 35000 | $ 0.19 | |||
| 50000 | $ 0.19 | |||
Description
General part information
ZXTR2008P5 Series
The ZXTR2008Z monolithically integrates a transistor, Zener diode and resistor to function as a high voltage linear regulator. The device regulates with an 8.2V nominal output and delivers up to 30mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a single SOT89 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
