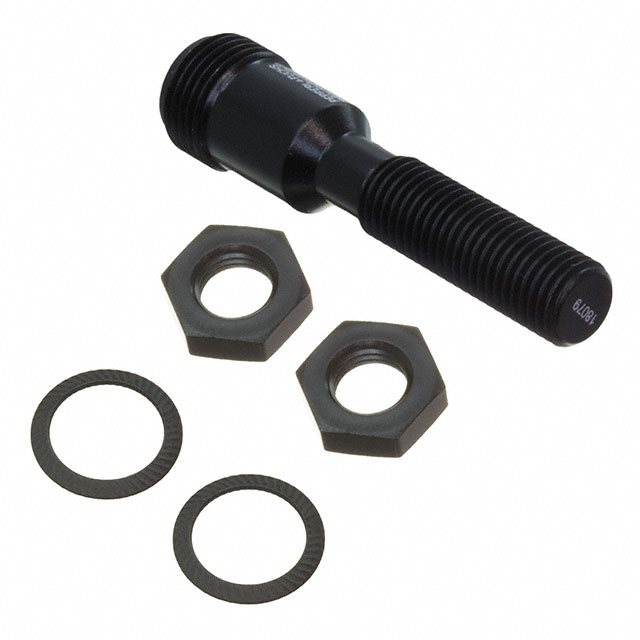

NMB1.5-8GM50-E2-C-FE-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM PNP PTFE COA

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM PNP PTFE COA

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Ingress Protection	Material - Body	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Sensor Type	Termination Style	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NMB1.5-8GM50-E2-C-FE-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-C-FE-150MM-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM65-E2-FE-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	70 °C	Unshielded	Inductive	Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-FE-150MM-V3	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	70 °C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-C-FE-150MM-V3	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 198.60

General part information

INDUCTIVE SEN 1.5MM PNP PTFE COA

Technical documentation and resources
