0397050005

Active

Molex

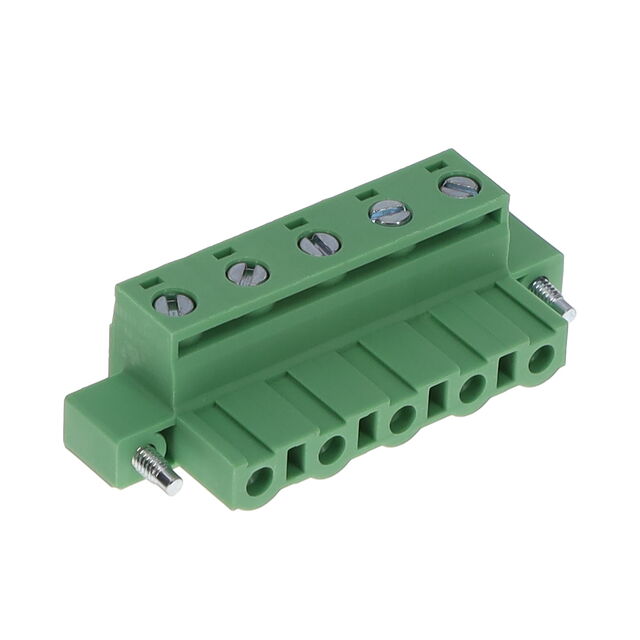

TERM BLOCK PLUG 5POS 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0397050005

Active

Molex

TERM BLOCK PLUG 5POS 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0397050005

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	10 A
Features	Mating Flange
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	5
Screw Size	M2.5
Termination Style	Screw
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	5 mm

039705 Series

Part	Termination Style	Type	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length	Current - UL	Contact Material	Material Flammability Rating	Mounting Type	Features	Positions Per Level	Pitch [x]	Pitch [x]	Color	Screw Size	Number of Positions	Voltage - UL	Contact Mating Finish	Number of Levels
Molex 0397050010	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	10	0.3 in	7.62 mm	Green	M2.5	10	300 V	Tin	1
Molex 0397050012	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	12	0.3 in	7.62 mm	Green	M2.5	12	300 V	Tin	1
Molex 0397050002	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	2	0.3 in	7.62 mm	Green	M2.5	2	300 V	Tin	1
Molex 0397050005	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	5	0.3 in	7.62 mm	Green	M2.5		300 V	Tin	1
Molex 0397050011	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	11	0.3 in	7.62 mm	Green	M2.5	11	300 V	Tin	1
Molex 0397050009	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	9	0.3 in	7.62 mm	Green	M2.5	9	300 V	Tin	1
Molex 0397050008	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	8	0.3 in	7.62 mm	Green	M2.5	8	300 V	Tin	1
Molex 0397050004	Screw	Plug Female Sockets	0.56 Nm	5 Lb-In	-40 °C	105 ░C	0.591 in	15 mm	30 AWG	12 AWG	5 mm	10 A	Copper Alloy	UL94 V-0	Free Hanging (In-Line)	Mating Flange	4	0.3 in	7.62 mm	Green	M2.5	4	300 V	Tin	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.61
		10	$ 1.87
		25	$ 1.63
		50	$ 1.48
		100	$ 1.35
		432	$ 1.15
		864	$ 1.09
		1296	$ 1.06
		5184	$ 0.98

Description

General part information

039705 Series

5 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
