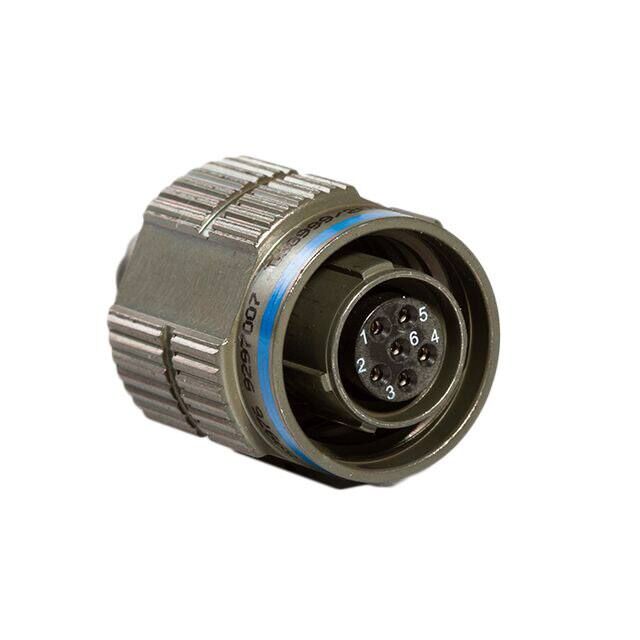

D38999/20ZJ46BA

Active

Conesys

AE3 46C 40#20, 4#16, 2#8 COAX SK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20ZJ46BA

Active

Conesys

AE3 46C 40#20, 4#16, 2#8 COAX SK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20ZJ46BA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16, 20
Contact Size [custom]	8
Contact Type	Crimp
Grade	Military
Housing Color	Black
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions [custom]	44
Number of Positions [custom]	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	46
Shell Size - Insert [Min]	25
Shell Size, MIL	F
Shielding	Shielded
Type	For Female Sockets

D38999/20ZJ Series

Part	Shell Finish	Shielding	Shell Material	Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Insert Material	Housing Color	Connector Type	Shell Size, MIL	Contact Type	Qualification	Material Flammability Rating	Note	Mounting Feature	Ingress Protection	Number of Positions	Contact Shape	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Contact Size	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Contact Material	Current Rating (Amps)	Termination	Applications	Color	Number of Positions [custom]	Number of Positions [custom]	Contact Size [custom]	Shell Size - Insert
Conesys D38999/20ZJ24AA	Black Zinc Nickel	Shielded	Aluminum Alloy	For Male Pins	-65 ░C	347 °F	A	Metal	Thermoplastic	Black	Receptacle Housing	B	Crimp	MIL-DTL-38999 Series III	UL94 V-0	Contacts Not Included	Flange	Waterproof	24	Circular	12 16	24	25	Military
Conesys D38999/20ZJ35AN	Black Zinc Nickel	Shielded	Aluminum Alloy	For Male Pins	-65 ░C	347 °F	N	Metal	Thermoplastic	Black	Receptacle Housing	D	Crimp	MIL-DTL-38999 Series III	UL94 V-0	Contacts Not Included	Flange	Waterproof	128	Circular				Military	22D
Conesys D38999/20ZJ61AC	Zinc Nickel	Shielded	Aluminum	For Male Pins	-65 ░C	347 °F	C			Black	Receptacle Housing	J	Crimp	MIL-DTL-38999 Series III		Contacts Not Included	Flange	Environment Resistant	61	Circular	20	61	25	Military
Conesys D38999/20ZJ35PA	Black Zinc Nickel	Shielded	Aluminum Alloy		-65 ░C	125 °C	A	Metal	Thermoplastic		Male Pins Receptacle	J		MIL-DTL-38999 Series III	UL94 V-0		Flange	Waterproof	128					Military		1.27 µm	50 µin	Gold	500 VAC	Copper Alloy	5 A	Crimp	Aerospace Marine Military	Black
Conesys D38999/20ZJ46BA	Black Zinc Nickel	Shielded	Aluminum Alloy	For Female Sockets	-65 ░C	347 °F	A	Metal	Thermoplastic	Black	Receptacle Housing	F	Crimp	MIL-DTL-38999 Series III	UL94 V-0	Contacts Not Included	Flange	Waterproof		Circular	16 20	46	25	Military											44	2	8
Conesys D38999/20ZJ61SC	Black Zinc Nickel	Shielded	Aluminum Alloy		-65 ░C	125 °C	C	Metal	Thermoplastic		Receptacle Female Sockets	J		MIL-DTL-38999 Series III	UL94 V-0		Flange	Waterproof	61			61	25	Military		1.27 µm	50 µin	Gold	500 VAC	Copper Alloy	7.5 A	Crimp	Aerospace Marine Military	Black
Conesys D38999/20ZJ11AA	Black Zinc Nickel	Shielded	Aluminum Alloy	For Male Pins	-65 ░C	347 °F	A	Metal	Thermoplastic	Black	Receptacle Housing	J	Crimp	MIL-DTL-38999 Series III	UL94 V-0	Contacts Not Included	Flange	Waterproof	11	Circular	10 20			Military														25-11
Conesys D38999/20ZJ37AC	Black Zinc Nickel	Shielded	Aluminum Alloy	For Male Pins	-65 ░C	347 °F	C	Metal	Thermoplastic	Black	Receptacle Housing	J	Crimp	MIL-DTL-38999 Series III	UL94 V-0	Contacts Not Included	Flange	Waterproof	37	Circular	16	37	25	Military
Conesys D38999/20ZJ11PN	Black Zinc Nickel	Shielded	Aluminum		-65 ░C	200 °C	N	Metal	Thermoplastic		Male Pins Receptacle	J					Flange	IP67 - Dust Tight Waterproof	11							1.27 µm	50 µin	Gold		Copper Alloy	7.5 A 33 A	Crimp	Aviation Marine Military	Black				25-11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.03
		10	$ 66.90
		25	$ 64.91
		50	$ 63.03
		100	$ 61.25
		250	$ 59.57
		500	$ 57.98
		1000	$ 56.48
		1500	$ 55.75
	Box	1	$ 112.24
		25	$ 101.02
		50	$ 91.84

Description

General part information

D38999/20ZJ Series

46 (44 + 2 Coax) Position Circular Connector Receptacle Housing Panel Mount
