100025287

Active

Telegartner Inc

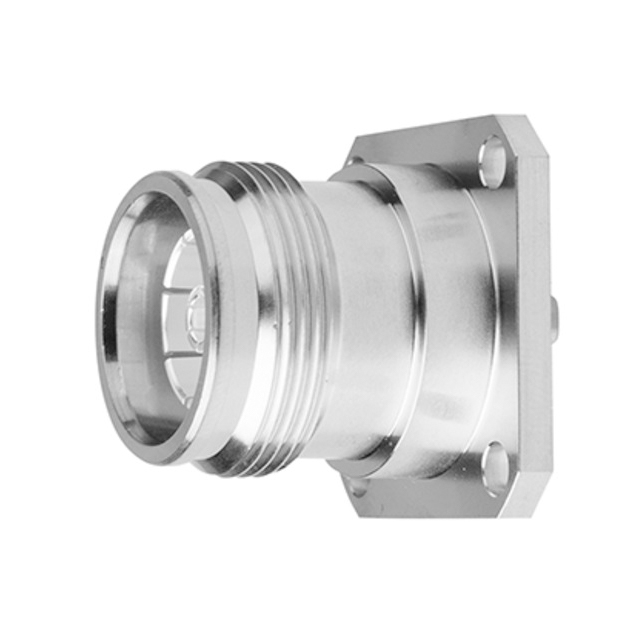

4.3-10 JCK STR FLNG SD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025287

Active

Telegartner Inc

4.3-10 JCK STR FLNG SD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100025287

Body Finish	White Bronze
Body Material	Copper Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

J01441A0 Series

Part	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Housing Color	Ingress Protection	Impedance	Mounting Feature	Frequency - Max [Max]	Connector Style	Center Contact Material	Connector Type	Body Material	Contact Termination	Center Contact Plating	Shield Termination	Number of Ports	Voltage Rating	Mounting Type	Mating Cycles
Telegartner Inc 100025260	Silver	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Silver	IP67 - Dust Tight Waterproof	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Solder	Silver	Solder	1
Telegartner Inc 100025287	White Bronze	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Silver		50 Ohms	Flange	6000 MHz	4.3/10	Copper Alloy	Female Socket Receptacle	Copper Alloy	Solder Cup	Silver	Solder	1
Telegartner Inc 100025267	Silver	85 °C	-40 °C		Silver	IP68 - Dust Tight Waterproof	50 Ohms		6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Crimp Solder	Silver	Clamp	1	1000 VDC	Free Hanging (In-Line)	500
Telegartner Inc 100025261	Silver	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Silver		50 Ohms	Flange	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Solder	Silver	Solder	1
Telegartner Inc 100025286	White Bronze	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Silver		50 Ohms	Flange	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Copper Alloy	Solder	Silver	Solder	1
Telegartner Inc 100025285	White Bronze	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Silver	IP67 - Dust Tight Waterproof	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Copper Alloy	Solder Cup	Silver	Solder	1
Telegartner Inc 100025262	Silver	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Silver		50 Ohms		6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Solder	Silver	Solder	1		Free Hanging (In-Line)
Telegartner Inc 100025264	Silver	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Silver		50 Ohms	Flange	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Solder	Silver	Solder	1
Telegartner Inc 100025263	Silver	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Silver	IP67 - Dust Tight Waterproof	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	4.3/10	Copper Alloy	Female Socket Jack	Brass	Solder	Silver	Solder	1
Telegartner Inc 100025269	Silver	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Silver	IP67 - Dust Tight Waterproof	50 Ohms	Flange		4.3/10	Beryllium Copper	Female Socket Jack	Brass	Solder	Silver		1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.96
		10	$ 21.10
		25	$ 19.51
		50	$ 17.35

Description

General part information

J01441A0 Series

4.3/10 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
