V7-1A17D8-048

Active

Honeywell Sensing and Productivity Solutions

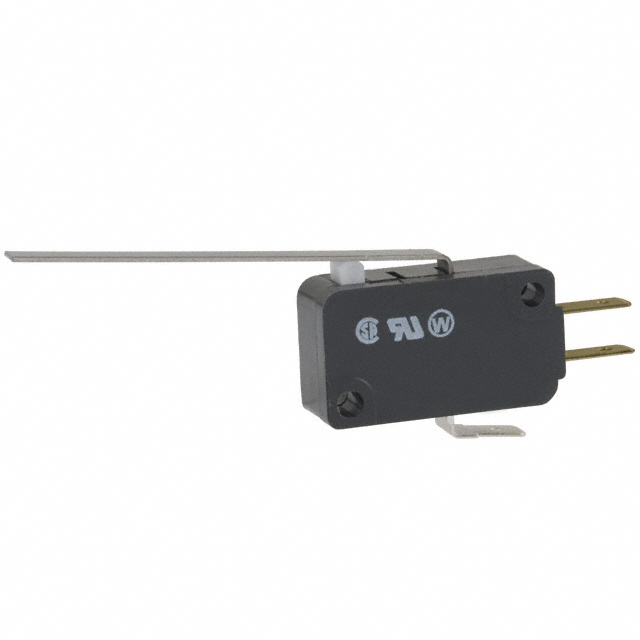

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide V7 Series Basic Switches Catalog +1

V7-1A17D8-048

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide V7 Series Basic Switches Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1A17D8-048

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	1.4 mm
Differential Travel	0.055 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	46 gf
Operating Position	15.3 mm
Operating Position	0.602 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.125 in
Overtravel	3.2 mm
Pretravel	6.35 mm
Pretravel	0.25 in
Release Force	4 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

V7-1 Series

Part	Termination Style	Overtravel	Overtravel	Operating Position	Operating Position	Differential Travel	Differential Travel	Electrical Life	Voltage Rating - DC	Switch Function	Actuator Type	Mounting Type	Circuit	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Operating Force	Release Force
Honeywell Sensing and Productivity Solutions V7-1C18E9-022	Quick Connect - 0.250" (6.3mm)	1.7 mm	0.065 in	0.6 in	15.2 mm	0.03 in	0.76 mm	100000 Cycles	125 VDC	On-Mom	Lever Straight	Chassis Mount	SPDT	0.11 in	2.8 mm	85 °C	-40 °C	15 A 500 mA	125 V	10000000 Cycles	85 gf
Honeywell Sensing and Productivity Solutions V7-1A17D8-048	Quick Connect - 0.187" (4.7mm)	3.2 mm	0.125 in	0.602 "	15.3 mm	0.055 in	1.4 mm	100000 Cycles		On-Mom	Lever Straight	Chassis Mount	SPDT	0.25 in	6.35 mm	85 °C	-40 °C	5 A	125 V	10000000 Cycles	46 gf	4 gf
Honeywell Sensing and Productivity Solutions V7-1Z29E995
Honeywell Sensing and Productivity Solutions V7-1C13D8-201	Quick Connect - 0.187" (4.7mm)	0.81 mm	0.032 in	0.812 in	20.6 mm	0.012 "	0.3 mm	100000 Cycles	125 VDC	On-Mom	Lever Roller	Chassis Mount	SPDT	0.047 in	1.2 mm			15 A 500 mA	125 V	10000000 Cycles	175 gf	19 gf
Honeywell Sensing and Productivity Solutions V7-1A17D8-000-1
Honeywell Sensing and Productivity Solutions V7-1Z20E94	Quick Connect - 0.250" (6.3mm)	1.27 mm	0.05 in	0.579 in	14.7 mm	0.01 in	0.25 mm			Off-Mom	Round (Pin Plunger)	Chassis Mount	SPST-NO	0.047 in	1.2 mm	85 °C	-40 °C	25 A	277 V	10000000 Cycles	225 gf
Honeywell Sensing and Productivity Solutions V7-1V29E9-263	Quick Connect - 0.250" (6.3mm)	1.6 mm	0.062 in	0.73 in	18.5 mm	0.025 in	0.6 mm	100000 Cycles		Off-Mom	Lever Simulated Roller	Chassis Mount	SPST-NO	0.114 in	2.9 mm	85 °C	-40 °C	21 A	125 V	10000000 Cycles	110 gf	7 gf
Honeywell Sensing and Productivity Solutions V7-1C17E9-048-S
Honeywell Sensing and Productivity Solutions V7-1B10E9
Honeywell Sensing and Productivity Solutions V7-1V29E9	Quick Connect - 0.250" (6.3mm)	1.27 mm	0.05 in	0.579 in	14.7 mm	0.01 in	0.25 mm	100000 Cycles		Off-Mom	Round (Pin Plunger)	Chassis Mount	SPST-NO	0.047 in	1.2 mm	85 °C	-40 °C	21 A	125 V	10000000 Cycles	175 gf	20 gf
