XDPE132G5CG000XUMA1

Active

Infineon Technologies

EP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

EP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XDPE132G5CG000XUMA1

Clock Sync	False
Control Features	Current Limit, Soft Start, Frequency Control, Ramp, Enable, On Time Control
Frequency - Switching [Max]	2 MHz
Frequency - Switching [Min]	200 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive

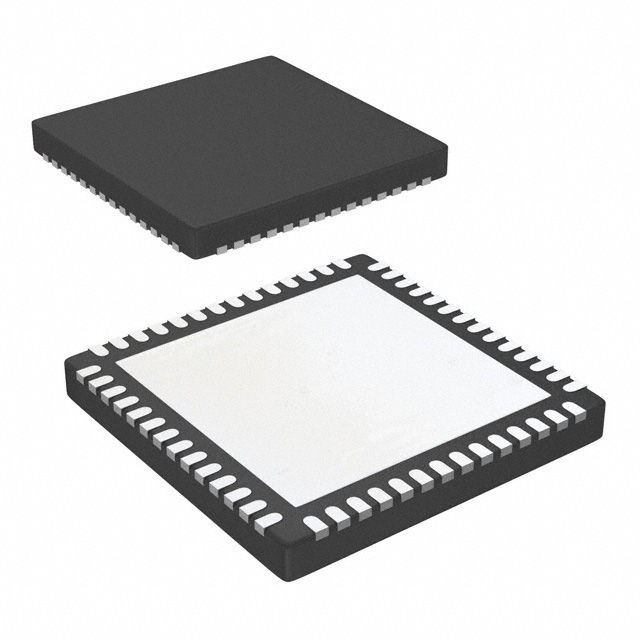

Package / Case	56-PowerVFQFN
Serial Interfaces	PMBus, I2C
Supplier Device Package	56-QFN
Supplier Device Package [x]	7
Supplier Device Package [y]	7
Synchronous Rectifier	False
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.9 V

Part	Mounting Type	Output Configuration	Package / Case	Number of Outputs	Function	Topology	Serial Interfaces	Clock Sync	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Synchronous Rectifier	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Control Features
Infineon Technologies XDPE132G5CG000XUMA1	Surface Mount	Positive	56-PowerVFQFN	2	Step-Down	Buck	I2C PMBus		3.6 V	2.9 V		2 MHz	200 kHz	-40 °C	120 °C	7	56-QFN	7	Current Limit Enable Frequency Control On Time Control Ramp Soft Start

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Regulator Positive Output Step-Down I2C, PMBus DC-DC Controller IC 56-QFN (7x7)

Technical documentation and resources

No documents available
