BC-CTS-161607

Active

Boxco

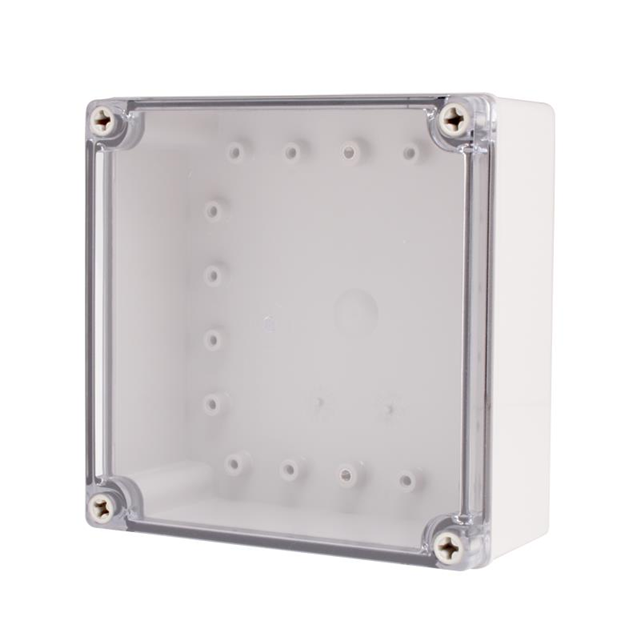

BOX PLASTIC CLEAR 6.3"L X 6.3"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-CTS-161607

Active

Boxco

BOX PLASTIC CLEAR 6.3"L X 6.3"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-CTS-161607

Area (L x W)	256 cm˛
Area (L x W)	39.7 in˛
Color	Light Gray, Clear Cover
Container Type	Box
Design	Lift-Off Screw Cover
Features	Sealing Gasket, Wall Mount, Flame Retardant
Height [z]	70 mm
Height [z]	2.756 "
Material	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	6.299 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	6.299 in
Size / Dimension [y]	160 mm

BC-CTS Series

Part	Design	Material	Area (L x W)	Area (L x W)	Container Type	Ratings	Color	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Height [z]	Height [z]
Boxco BC-CTS-151507	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	34.9 in˛	225 cm²	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	5.906 "	150 mm	5.906 in	150 mm	UL94 5VA UL94 HB UL94 V-0	75 mm	2.953 in
Boxco BC-CTS-101807	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	28.7 in˛	185 cm˛	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	3.937 in	185 mm	7.283 in	100 mm	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 "
Boxco BC-CTS-121207	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	24.2 in˛	156 cm˛	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	4.921 "	125 mm	4.921 in	125 mm	UL94 5VA UL94 HB UL94 V-0	75 mm	2.953 in
Boxco BC-CTS-283813	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	165 in˛	1064 cm˛	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	11.024 "	380 mm	14.961 in	280 mm	UL94 5VA UL94 HB UL94 V-0	130 mm	5.118 in
Boxco BC-CTS-193818	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	112 in˛	722 cm²	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	7.48 in	380 mm	14.961 in	190 mm	UL94 5VA UL94 HB UL94 V-0	180 mm	7.087 in
Boxco BC-CTS-082507	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	31 in²	200 cm²	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	3.15 in	250 mm	9.843 "	80 mm	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 "
Boxco BC-CTS-081807	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	22.3 in²	144 cm²	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	3.15 in	180 mm	7.087 "	80 mm	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 "
Boxco BC-CTS-161607	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	39.7 in˛	256 cm˛	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	6.299 in	160 mm	6.299 "	160 mm	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 "
Boxco BC-CTS-151510	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	34.9 in˛	225 cm²	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	5.906 "	150 mm	5.906 in	150 mm	UL94 5VA UL94 HB UL94 V-0	100 mm	3.937 in
Boxco BC-CTS-121710	Lift-Off Screw Cover	Plastic Polycarbonate/Fiberglass	33.9 in˛	219 cm˛	Box	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	4.921 "	175 mm	6.89 in	125 mm	UL94 5VA UL94 HB UL94 V-0	100 mm	3.937 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.75

Description

General part information

BC-CTS Series

Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Lift-Off Screw Cover 6.299" L x 6.299" W (160.00mm x 160.00mm) X 2.756" (70.00mm)
