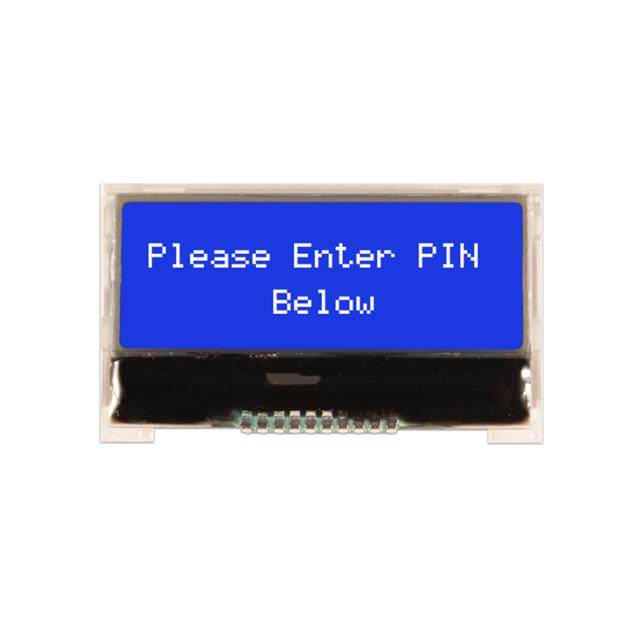

NHD-C0216CZ-NSW-BBW-3V3

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSMISV WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure Datasheet +1

NHD-C0216CZ-NSW-BBW-3V3

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSMISV WHT

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-C0216CZ-NSW-BBW-3V3

Background Color	Blue
Backlight	LED - White
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	1.82 mm
Character Size [z]	4.13 mm
Controller Type	ST-7032
Display Format [x]	16
Display Format [y]	2
Display Mode	Transmissive
Display Type	STN - Super-Twisted Nematic
Dot Size [x]	0.34 mm
Dot Size [y]	0.49 mm
Interface	Serial
Number of Characters	32
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	41.4 mm
Outline L x W x H [y]	24.3 mm
Outline L x W x H [z]	4 mm
Text Color	White
Viewing Area [x]	37.6 mm
Viewing Area [y]	12.8 mm
Voltage - Supply [Max]	4.5 V
Voltage - Supply [Min]	2.7 V

NHD-C0216 Series

Part	Display Format [y]	Display Format [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Area [y]	Viewing Area [x]	Character Format [y]	Character Format [x]	Backlight	Display Mode	Dot Size [y]	Dot Size [x]	Text Color	Number of Characters	Background Color	Controller Type	Character Size [custom]	Character Size [custom]	Display Type	Interface	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Character Size [y]	Character Size [z]
Newhaven Display Intl NHD-C0216AZ-FSW-GBW	2	16	5.5 V	4.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	LED - White	Transflective	0.55 mm	0.41 mm	Blue	32	Gray	NT-7605	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	Parallel
Newhaven Display Intl NHD-C0216CU-FSW-GBW-3V3	2	16	5.5 V	2.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	LED - White	Transflective	0.55 mm	0.41 mm	Blue	32	White	ST-7032	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	Parallel	5.5 mm	56 mm	25.3 mm
Newhaven Display Intl NHD-C0216AZ-FN-GBW	2	16	5.5 V	4.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	Without Backlight	Transflective	0.55 mm	0.41 mm	Blue	32	Gray	NT-7605	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	Parallel	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CZ-NSW-BBW-3V3	2	16	4.5 V	2.7 V	-20 C	70 °C	12.8 mm	37.6 mm	8 Dots	5 Dots	LED - White	Transmissive	0.49 mm	0.34 mm	White	32	Blue	ST-7032			STN - Super-Twisted Nematic	Serial	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216CU-FN-GBW-3V	2	16	5.5 V	2.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	Without Backlight	Transflective	0.55 mm	0.41 mm	Blue	32	Gray	ST-7032	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	Parallel	2 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CIZ-FN-FBW-3V	2	16	3.3 V	2.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	Without Backlight	Transflective	0.55 mm	0.41 mm	Black	32	Gray	AiP31032	2.21 mm	4.68 mm	FSTN - Film Super-Twisted Nematic	I2C	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CZ-FSW-FBW-3V3	2	16	4.5 V	2.7 V	-20 C	70 °C	12.8 mm	37.6 mm	8 Dots	5 Dots	LED - White	Transflective	0.49 mm	0.34 mm	Black	32	White	ST-7032			FSTN - Film Super-Twisted Nematic	Serial	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216CIZ-FSW-FBW-3V3	2	16	3.3 V	2.7 V	-20 C	70 °C	14.3 mm	45.7 mm	8 Dots	5 Dots	LED - White	Transflective	0.55 mm	0.41 mm	Black	32	White	AiP31032	2.21 mm	4.68 mm	FSTN - Film Super-Twisted Nematic	I2C	5.5 mm	56 mm	25.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.69
		5	$ 11.93
		10	$ 11.17
		50	$ 10.53
		100	$ 10.03
		250	$ 9.52
		500	$ 9.14

Description

General part information

NHD-C0216 Series

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Serial 41.40mm x 24.30mm x 4.00mm
