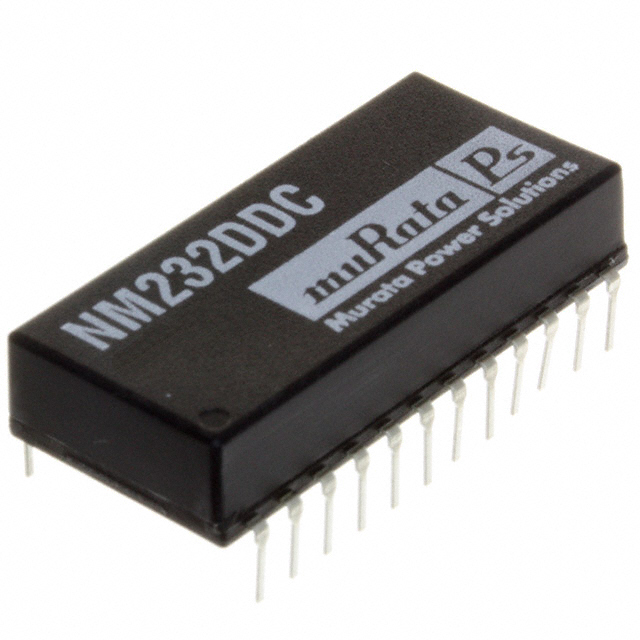

NM232DDC

Obsolete

Murata Power Solutions Inc.

IC TRANSCEIVER FULL 2/2 24DIP

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

IC TRANSCEIVER FULL 2/2 24DIP

Technical Specifications

Parameters and characteristics for this part

Specification	NM232DDC

Data Rate	9.6 kbps
Duplex	Full
Mounting Type	Through Hole
Number of Drivers/Receivers [custom]	2
Number of Drivers/Receivers [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	24-DIP
Package / Case [x]	0.667 in
Package / Case [y]	16.95 mm
Protocol	RS232
Receiver Hysteresis	500 mV
Supplier Device Package	24-DIP
Type	Transceiver
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Receiver Hysteresis	Package / Case	Package / Case [x]	Package / Case [y]	Duplex	Protocol	Type	Supplier Device Package	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. NM232DDC	500 mV	24-DIP	0.667 in	16.95 mm	Full	RS232	Transceiver	24-DIP	Through Hole	4.5 V	5.5 V	2	2	9.6 kbps	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2/2 Transceiver Full RS232 24-DIP
