280-641

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Technical Specifications

Parameters and characteristics for this part

Part	Material - Insulation	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Terminal - Width	Number of Levels	Color	Current - IEC	Voltage - IEC	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	For Use With/Related Products
WAGO Corporation 280-646	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	4	0.08 mm²	2.5 mm²
WAGO Corporation 280-633	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	20 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	4	0.08 mm²	2.5 mm²
WAGO Corporation 280-607	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Green Yellow			Ground Earth	28 AWG	12 AWG	Push In Spring	2	0.08 mm²	2.5 mm²
WAGO Corporation 280-601	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	2	0.08 mm²	2.5 mm²
WAGO Corporation 280-331									End Plate							Terminal Blocks
WAGO Corporation 280-653	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Red	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring		0.08 mm²	2.5 mm²
WAGO Corporation 280-684	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Blue	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring		0.08 mm²	2.5 mm²
WAGO Corporation 280-326									End Plate							Terminal Blocks
WAGO Corporation 280-651	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Blue	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring
WAGO Corporation 280-641	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

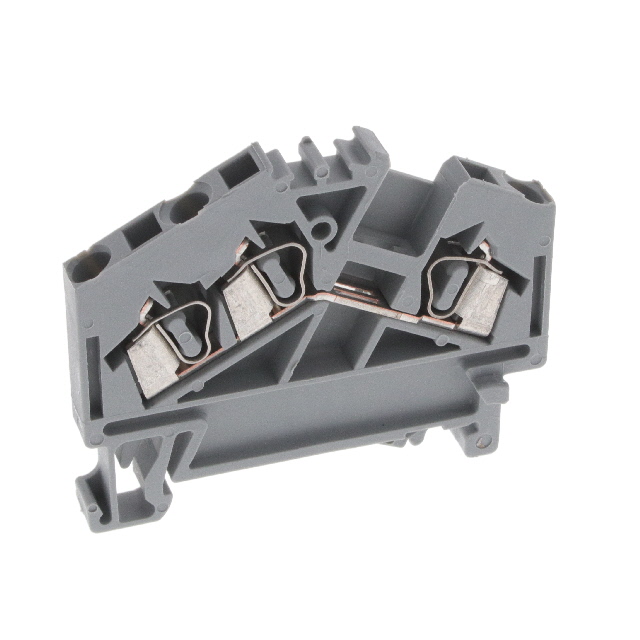

The 280-641 from Wago is a 3 conductor through DIN rail terminal block. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
