DSPIC33EP32GS505T-I/PT
ActiveMicrochip Technology
DIGITAL POWER SMPS, HIGH SPEED ADC, DAC
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33EP32GS505T-I/PT
ActiveMicrochip Technology
DIGITAL POWER SMPS, HIGH SPEED ADC, DAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33EP32GS505T-I/PT |
|---|---|
| Connectivity | LINbus, I2C, IrDA, SPI, UART/USART |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

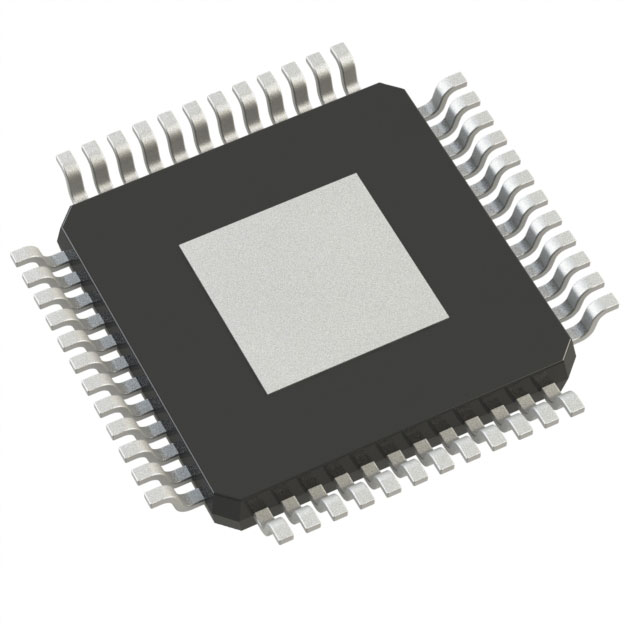

| Package / Case | 48-TQFP Exposed Pad |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Speed | 70 MIPs |
| Supplier Device Package | 48-TQFP-EP (7x7) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1600 | $ 4.26 | |
| Microchip Direct | T/R | 1 | $ 5.14 | |
| 25 | $ 4.71 | |||
| 100 | $ 4.26 | |||
| 1000 | $ 3.94 | |||
| 5000 | $ 3.74 | |||
Description
General part information
dsPIC33EP32GS505 Series
dsPIC33EPXXGS50X is a SMPS & Digital Power Conversion Digital Signal Controller. These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as:
• AC to DC Converters
• DC to DC Converters
