E2042S.30.10

Unknown

Prysmian Group

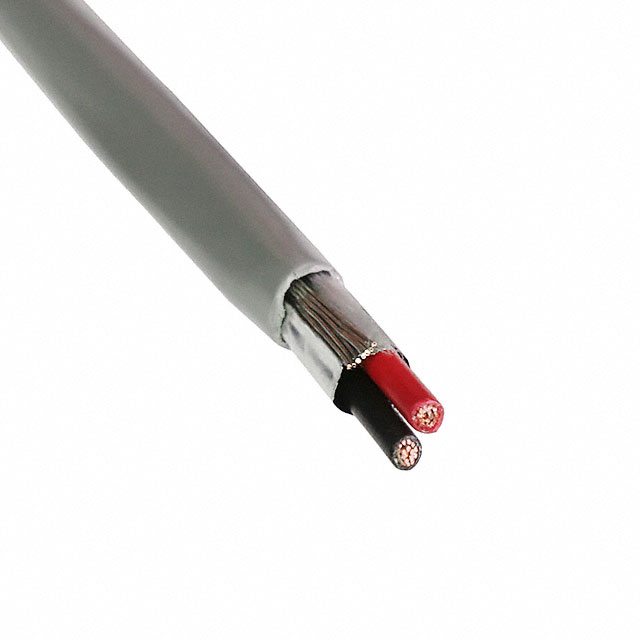

CABLE 2COND 16AWG GRAY SHLD 100'

Search across all available documentation for this part.

Unknown

Prysmian Group

CABLE 2COND 16AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	E2042S.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.65 mm
Jacket (Insulation) Diameter [diameter]	0.183 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	16 AWG

Part	Voltage	Conductor Material	Cable Type	Number of Conductors	Jacket Color	Shield Material	Usage	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Shield Coverage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type
Prysmian Group E2042S.30.10	300 V	Copper Bare	Multi-Conductor	2	Gray	Flexfoil®	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	16 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	4.65 mm	0.183 in	19	0.0117 in	1000 ft	304.8 m	100 %	Drain Wire Rip Cord	0.015 in	0.381 mm	Foil
Prysmian Group E2042S.25.10	300 V	Copper Bare	Multi-Conductor	2	Gray	Flexfoil®	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	16 AWG	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	4.65 mm	0.183 in	19	0.0117 in			100 %	Drain Wire Rip Cord	0.015 in	0.381 mm	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.18

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG Foil 100.0' (30.5m)
