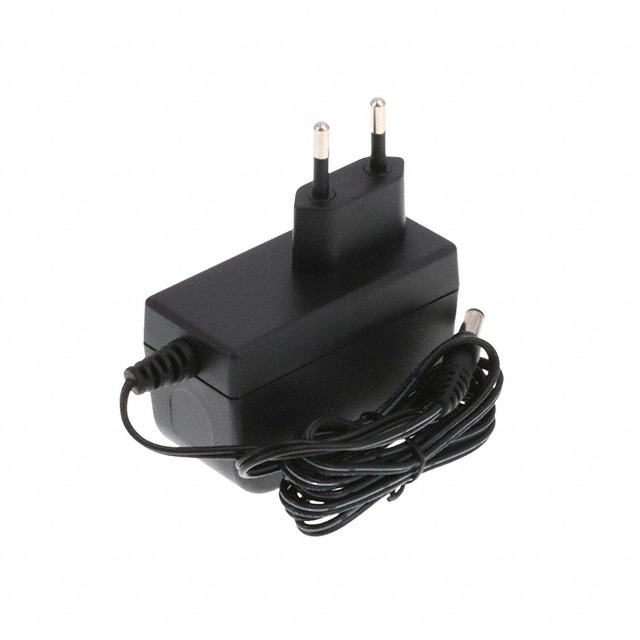

WR9ME1500CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9ME1500CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	EAC, UKRSepro, CE, SIQ, LPS
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	Europe
Size / Dimension [x]	2.89 in
Size / Dimension [x]	73.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	64.4 mm
Size / Dimension [z]	2.54 "
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Standard Number	Approval Agency	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	No Load Power Consumption [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Applications	Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Region Utilized	Power (Watts)	Cord Length	Cord Length	Current - Output (Max) [Max]	Polarization
GlobTek, Inc. WR9ME1500CCP-F(R6B)	60950-1	CE EAC LPS SIQ UKRSepro	CEE 7/16	Barrel Plug	2.1 mm 5.5 mm	11 mm	75 mW	64.4 mm	2.89 in	2.54 "	35 mm	1.38 "	73.5 mm	Level VI	90 VAC	264 VAC	Fixed Blade	ITE (Commercial)	Wall Mount (Class II)	40 °C	0 °C	12 V	Europe	18 W	60.2 in	1.53 m	1.5 A	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
