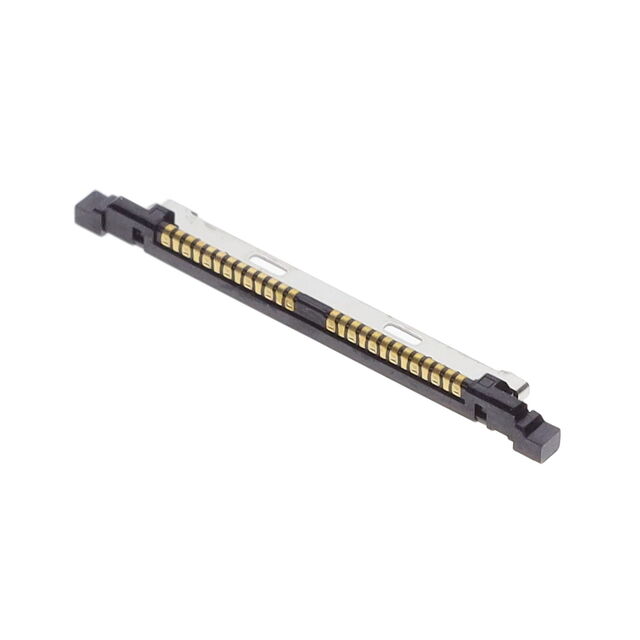

DF56L-26P-0.3SD(51)
ActiveHirose Electric USA, Inc.
0.3MM PITCH, VERTICAL MATING, BOARD-TO-FINE COAXIAL CABLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF56L-26P-0.3SD(51)
ActiveHirose Electric USA, Inc.
0.3MM PITCH, VERTICAL MATING, BOARD-TO-FINE COAXIAL CABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF56L-26P-0.3SD(51) |
|---|---|
| Cable Termination | Solder |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Type | Non-Gender Specific |
| Fastening Type | Detent Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 1 |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
| Wire Gauge [Max] | 46 AWG |
| Wire Gauge [Min] | 42 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| 2500 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.77 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.50 | |||
| 2500 | $ 0.45 | |||
| Tape & Reel (TR) | 10000 | $ 0.39 | ||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.72 | |
| 50000 | $ 0.62 | |||
Description
General part information
DF56L Series
26 Position Rectangular Plug Connector Solder Gold 42-46 AWG
