A13ZR13ZR28H152B

Active

JST Sales America Inc.

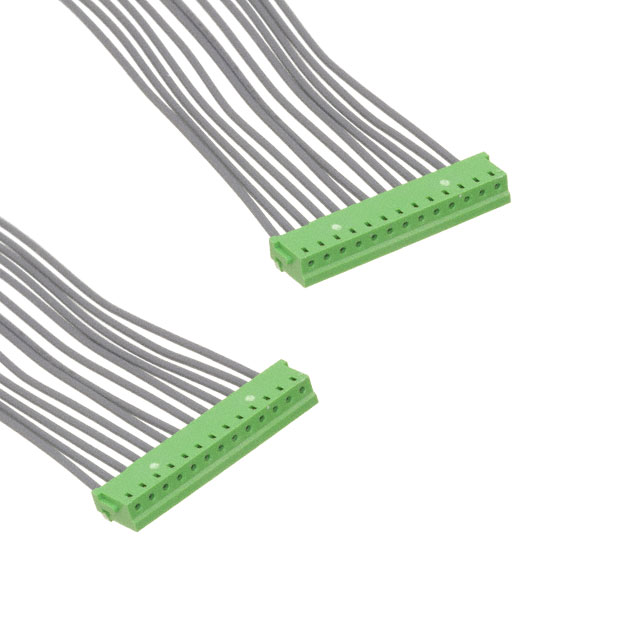

JUMPER 13ZR-8M-P - 13ZR-8M-P 6"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 13ZR-8M-P - 13ZR-8M-P 6"

Technical Specifications

Parameters and characteristics for this part

Part	Color	Cable Termination	Length	Length	Length	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows	Number of Positions	Contact Finish	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A13ZR13ZR28H203B	Gray Individual	IDC	0.667 ft	8 in	203.2 mm	0.059 "	1.5 mm	Socket to Socket	1	13	Tin
JST Sales America Inc. A13ZR13ZR28H51A	Gray Individual	IDC	0.167 '	2 "	50.8 mm	0.059 "	1.5 mm	Socket to Socket Reversed	1	13	Tin
JST Sales America Inc. A13ZR13ZR28H203A	Gray Individual	IDC	0.667 ft	8 in	203.2 mm	0.059 "	1.5 mm	Socket to Socket Reversed	1	13	Tin
JST Sales America Inc. A13ZR13ZR28H305B	Gray Individual	IDC	1 ft		304.8 mm	0.059 "	1.5 mm	Socket to Socket	1	13	Tin
JST Sales America Inc. A13ZR13ZR28H152B	Gray Individual	IDC		6 "	152.4 mm	0.059 "	1.5 mm	Socket to Socket	1	13	Tin	0.5 '
JST Sales America Inc. A13ZR13ZR28H102A	Gray Individual	IDC				0.059 "	1.5 mm	Socket to Socket Reversed	1	13	Tin		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A13ZR13ZR28H254A	Gray Individual	IDC	0.833 ft	10 in	254 mm	0.059 "	1.5 mm	Socket to Socket Reversed	1	13	Tin
JST Sales America Inc. A13ZR13ZR28H152A	Gray Individual	IDC		6 "	152.4 mm	0.059 "	1.5 mm	Socket to Socket Reversed	1	13	Tin	0.5 '
JST Sales America Inc. A13ZR13ZR28H102B	Gray Individual	IDC				0.059 "	1.5 mm	Socket to Socket	1	13	Tin		4 "	0.333 ft	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
